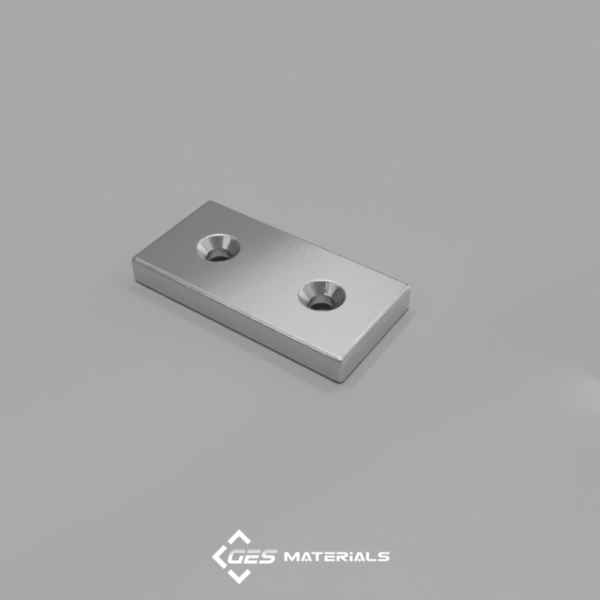

2 x 1 x 1/4 Inch Countersunk Block Magnet (#8 screw) | BY0X04DCS N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Description:

Dimensions: 2″ x 1″ x 1/4″ thick w/ holes to accept #8 screws
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 2.01 oz. (57.06 g)
Pull Force, Case 1: 34.34 lbs
Pull Force, Case 2: 129.6 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

The BY0X04DCS is a powerful, 2-inch-long neodymium block magnet designed for strength, durability, and versatility. Featuring two double countersunk holes on either side, this magnet is ideal for securely fastening to surfaces like wood, aluminum, stainless steel, and plastic—perfect for applications where magnets typically wouldn’t stick.

Whether for fixtures, displays, custom hardware, or demanding industrial uses, the BY0X04DCS brings exceptional magnetic force to even the most unconventional surfaces.

Also available without countersunk holes in:

Grade N42 as part number BY0X04
Grade N52 as part number BY0X04-N52
