2 x 1 x 1/2 Inch Countersunk Block Magnet (#8 screw) | BY0X08DCS N52 Magnets

Additional information

Description:

Dimensions: 2″ x 1″ x 1/2″ thick w/ holes to accept #8 screws
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 4.10 oz. (116.16 g)
Pull Force, Case 1: 91.61 lbs
Pull Force, Case 2: 124.19 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

Applications:

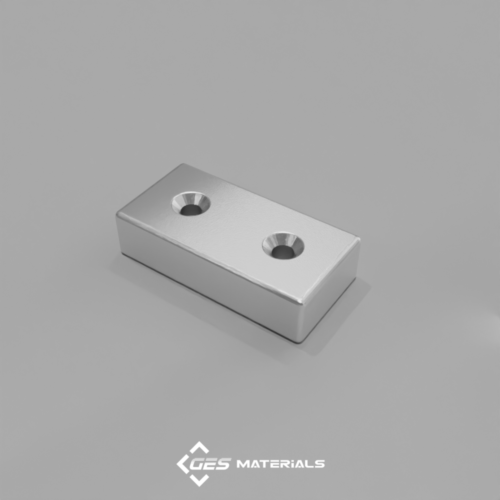

The BY0X08DCS-N52 is a high-performance, 2″ long neodymium block magnet in the powerful N52 grade, offering exceptional holding strength in a compact form. Featuring two double countersunk holes on either side, this magnet is designed to fasten securely to non-magnetic surfaces like wood, aluminum, stainless steel, and plastic. With symmetrical countersinks on both the North and South poles, it’s fully reversible for flexible mounting options.

Ideal for demanding applications in construction, cabinetry, fixture mounting, marine use, and more, the BY0X08DCS-N52 combines durability with unmatched magnetic force.

Other versions available in this size:

BY0X08DCS – Grade N42, Double Countersunk
BY0X08DCSPC-BLK – Grade N42, Double Countersunk, Black plastic coated
BY0X08 – Grade N42, Nickel plated, No holes
BY0X08-N52 – Grade N52, Nickel plated, No holes
