2 x 1 x 1/2 Inch Plastic Coated Countersunk Block Magnet (#8 screw) | BY0X08DCSPC-BLK N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

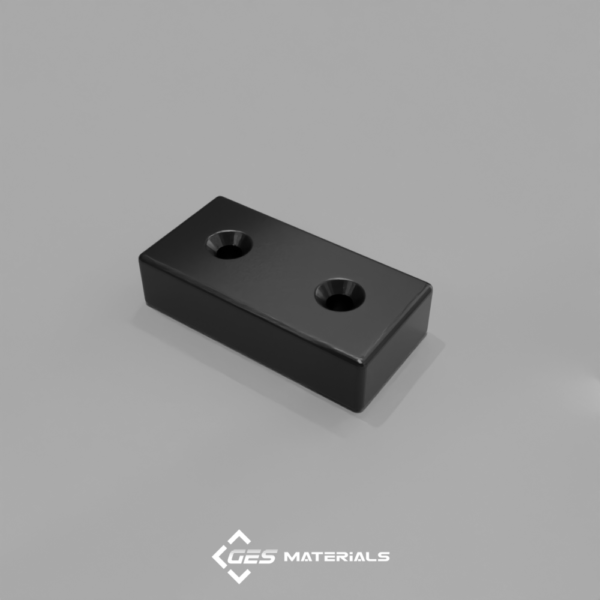

2 x 1 x 1/2 Inch Plastic Coated Countersunk Block Magnet (#8 screw) | BY0X08DCSPC-BLK N42 Magnets

Additional information

Description:

Dimensions: 2″ x 1″ x 1/2″ thick w/ holes to accept #8 screws
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Black Plastic
Magnetization Direction: Thru Thickness
Weight: 3.59 oz (101.7 g)
Pull Force, Case 1: 42.76 lbs
Pull Force, Case 2: 91.85 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These rugged block magnets are protected by a layer of durable black plastic, making them waterproof and highly resistant to impact and corrosion. Unlike standard neodymium magnets, they can withstand repeated contact and harsh conditions without chipping or cracking.

Each block features two double countersunk holes on either side, allowing for secure mounting with flat-head screws and making them reversible for added flexibility. Whether you’re working in aquatic setups, marine environments, outdoor installations, or industrial settings, these magnets offer exceptional strength and reliability.

Also available in this size:

BY0X08DCS – Grade N42, Nickel Plated, Countersunk
BY0X08-N52 – Grade N52, Nickel Plated, No Holes
BY0X08 – Grade N42, Nickel Plated, No Holes
BY0X08TP-N52 – Grade N52, Rubber Coated, No Holes
