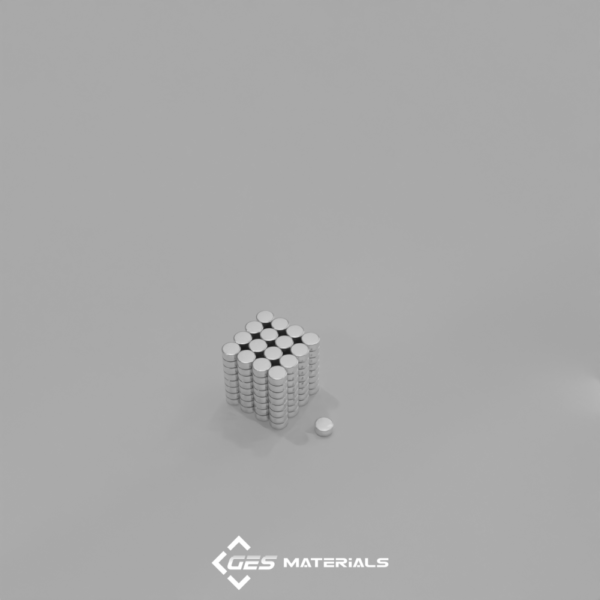

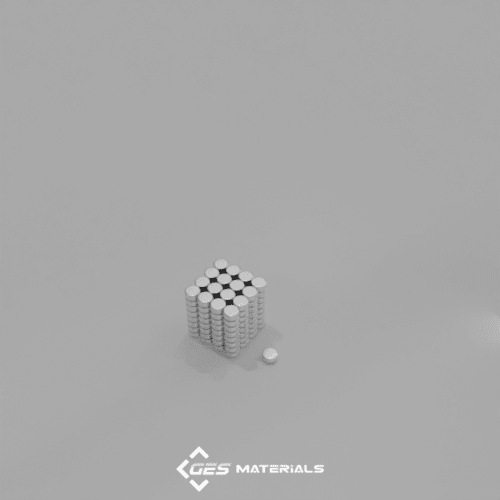

1/16 dia. x 1/32 inch thick Round Disc Magnets | D101-N52 Magnet

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1/16 dia. x 1/32 inch thick Round Disc Magnets | D101-N52 Magnet

Categories Neodymium Disc Magnets, Neodymium Magnets

Additional information

Description:

Dimensions: 1/16″ dia. x 1/32″ thick
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.000416 oz. (0.0118 g)
Pull Force, Case 1: 0.07 lbs
Pull Force, Case 2: 0.11 lbs
Surface Field: 5233 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

Applications:

These discs are incredibly small. Even though they are tiny, just one or two of these incredible magnets will hold a sheet of 8 1/2″ x 11″ paper to a fridge or filing cabinet.
