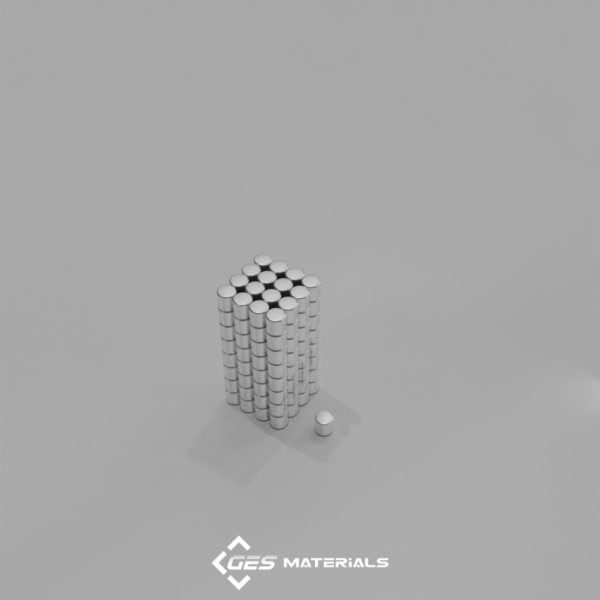

1/16 dia.x 1/16 inch thick Cylinder Magnets | D11-N52 Magnet

Additional information

Description:

Dimensions: 1/16″ dia. x 1/16″ thick
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.000831 oz. (0.0236 g)
Pull Force, Case 1: 0.12 lbs
Pull Force, Case 2: 0.12 lbs
Surface Field: 6619 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

Applications:

These compact cylindrical magnets, made from high-strength N52 grade material, are commonly used to activate Hall Effect sensors. They also work well for small DIY crafts and as miniature fridge magnets.

This same size is also offered in the N42SH high-temperature grade under part number D11SH.
