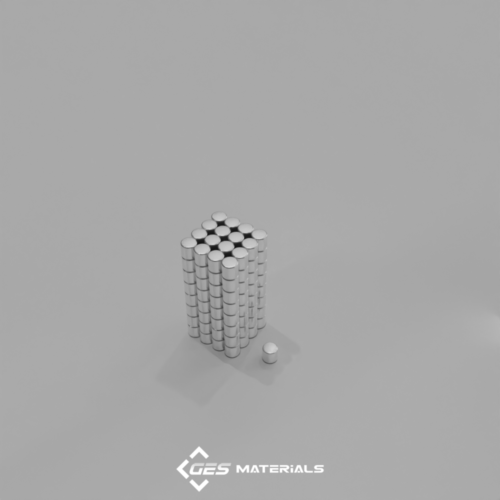

1/16 x 1/16 Inch Cylinder Magnets | D11SH Magnet

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1/16 x 1/16 Inch Cylinder Magnets | D11SH Magnet

Additional information

Description:

Dimensions: 1/16″ dia. x 1/16″ thick
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N42SH
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.000831 oz. (0.0236 g)
Pull Force, Case 1: 0.10 lbs
Pull Force, Case 2: 0.10 lbs
Surface Field: 5903 Gauss
Max Operating Temp: 302ºF (150ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These compact cylindrical magnets are commonly used to activate Hall Effect sensors. They’re also handy for various small-scale arts and crafts projects.

Magnets with an SH grade can withstand temperatures up to 302ºF (150ºC), significantly higher than the standard N grade magnets, limited to 176ºF (80ºC). This makes them ideal for use in environments where higher heat resistance is required.

This specific size is also offered in N52 grade, under the part number D11-N52.
