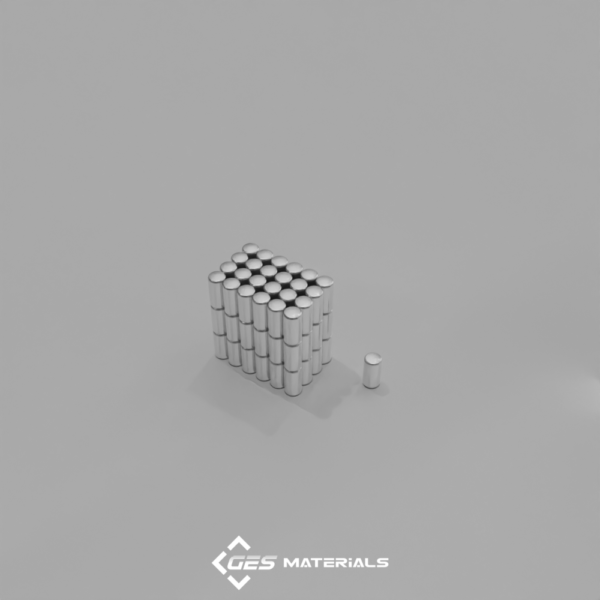

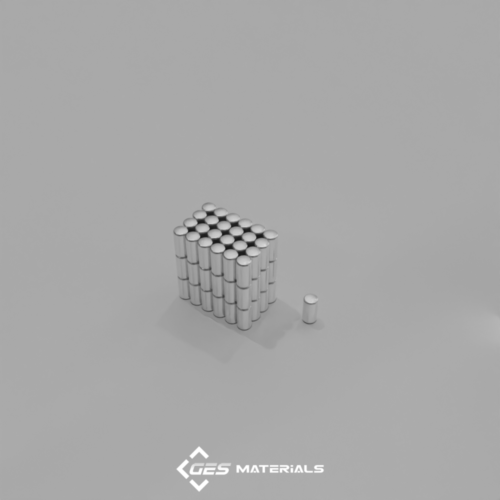

1/16 x 1/8 Inch Cylinder Magnets | D12-N52 Magnet

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1/16 x 1/8 Inch Cylinder Magnets | D12-N52 Magnet

Categories Neodymium Cylinder Magnets, Neodymium Magnets, Permanent Magnets

Additional information

Description:

Dimensions: 1/16″ dia. x 1/8″ thick
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.00166 oz. (0.0471 g)
Pull Force, Case 1: 0.15 lbs
Pull Force, Case 2: 0.16 lbs
Surface Field: 7179 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

Applications:

Tiny cylinders in the popular 2-to-1 length-to-diameter ratio. Useful for the Hall Effect and many other applications.
