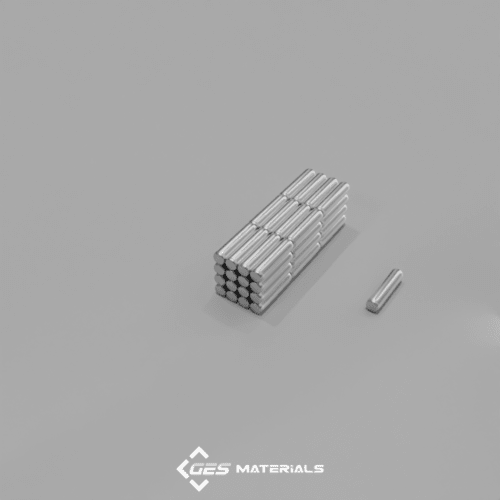

1/16 x 1/4 Inch Cylinder Magnets | D14 Magnet

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Size	0.062 x 0.25 Inch ( Diameter x Thickness )
Tolerances	±0.004 in (.1mm)
Grade	N42
Coating	Nickel-Copper-Nickel (Ni-Cu-Ni)
Magnetization Direction	Axially Magnetized

Description:

Size: 0.062 x 0.25 Inch ( Diameter x Thickness )
Metric Size:1.59 x 6.35 mm ( Diameter x Thickness )
Tolerances: ±0.004 in (.1mm)
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.00333 oz. (0.0943 g)
Pull Force, Case 1: 0.15 lbs
Pull Force, Case 2: 0.16 lbs
Surface Field: 6549 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These small cylinders are interesting to use with larger magnets. These small rods will align themselves with the magnetic field lines of larger magnets. This size is also available in grade N52 as part number D14-N52.
