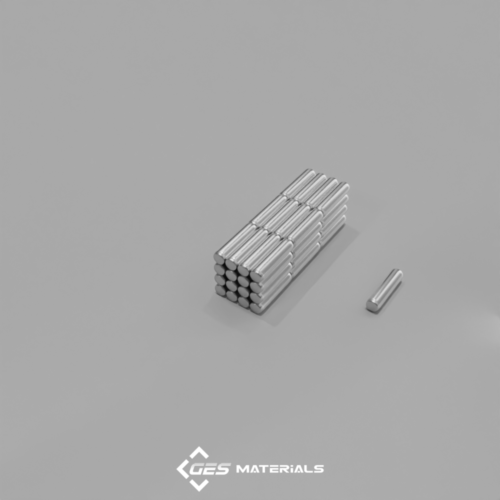

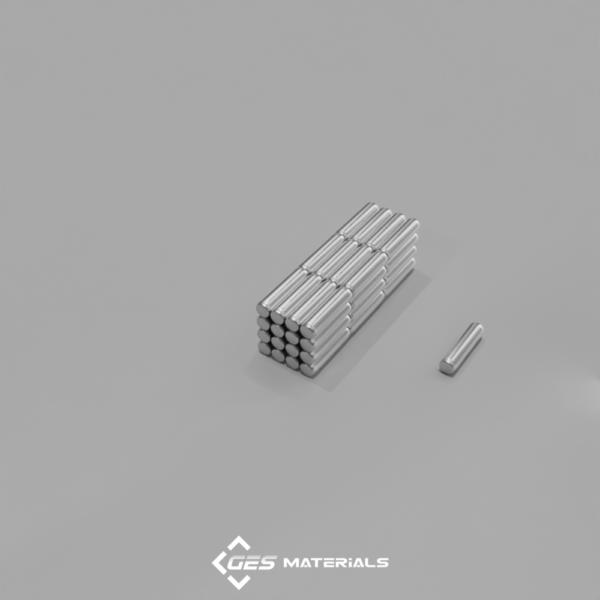

1/16 x 1/4 Inch Cylinder Magnets | D14-N52 Magnet

Additional information

Facebook
Twitter
LinkedIn

Description:

  • Dimensions: 1/16″ dia. x 1/4″ thick
  • Tolerances: ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N52
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Axial (Poles on Flat Ends)
  • Weight: 0.00333 oz. (0.0943 g)
  • Pull Force, Case 1: 0.19 lbs
  • Pull Force, Case 2: 0.20 lbs
  • Surface Field: 7343 Gauss
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 14,800 Gauss
  • BHmax: 52 MGOe

Applications:

These small, N52 cylinders are often used as triggering devices for Hall Effect sensors. They are also useful for small arts and crafts applications and tiny fridge magnets.

This size is also available in grade N42 as part number D14.
