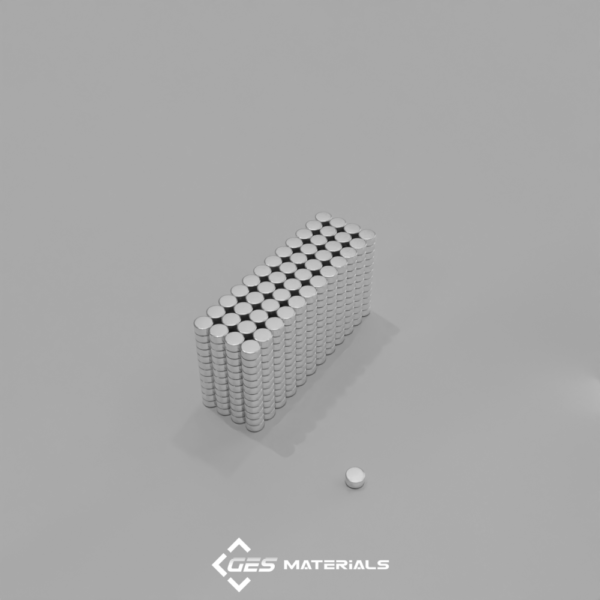

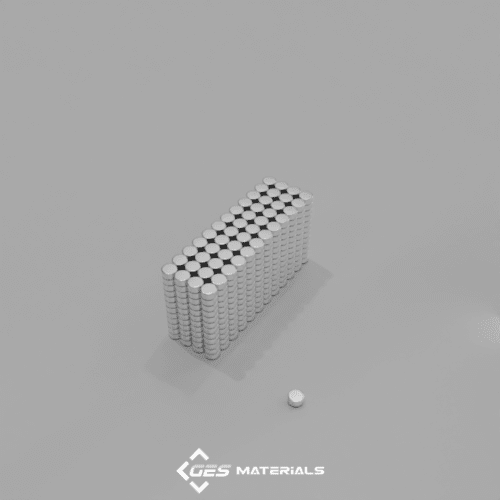

1/8 x 1/16 Inch High Temp Disc Magnet | D21SH-N42 Magnets

SKU m0007 Categories Neodymium Disc Magnets, Neodymium Magnets, Permanent Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Description:

Dimensions: 1/8″ dia. x 1/16″ thick
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N42SH
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.00333 oz. (0.0943 g)
Pull Force, Case 1: 0.45 lbs
Pull Force, Case 2: 0.84 lbs
Surface Field: 4667 Gauss
Max Operating Temp: 302ºF (150ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

We offer our highly popular 1/8″ diameter x 1/16″ thick disc magnets in N42SH grade, specially designed for high-temperature applications. With a maximum operating temperature of 302°F (150°C), N42SH magnets can withstand significantly more heat than standard N-grade magnets, which are limited to 176°F (80°C). These are ideal when you need a compact magnet that performs reliably in elevated temperatures.

Precision Sensing Systems:
Used in position sensing, speed detection, and encoder systems, typically working with Hall sensors in rotating or moving components.
High-Temperature Industrial Equipment:
Suitable for applications in demanding environments such as turbines, aerospace components, and energy systems, where reliable magnetic performance at elevated temperatures is required.
Tooling & Machining Fixtures:
Applied in precision machining for temporary positioning, holding, or alignment of small components without affecting accuracy.
Assembly & Component Retention:
Used for securing small parts during assembly or operation, improving efficiency and reducing the risk of component loss.
