1/8 x 1/4 Inch Diametric Cylinder Magnet | D24DIA-N42 Magnets

Categories Diametric Magnets, Neodymium Cylinder Magnets, Neodymium Magnets, Permanent Magnets

1/8 x 1/4 Inch Diametric Cylinder Magnet | D24DIA-N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Description:

Dimensions: 1/8″ dia. x 1/4″ thick
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Diametrical
Weight: 0.0133 oz. (0.377 g)
Pull Force, Case 1: 1.16 lbs
Pull Force, Case 2: 1.63 lbs
Surface Field: 6448 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These small diametrically magnetized cylinders are ideal for use with Hall Effect sensors.

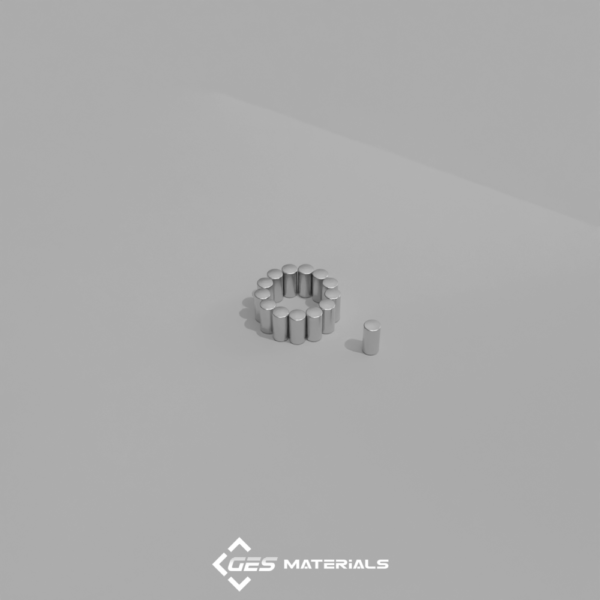

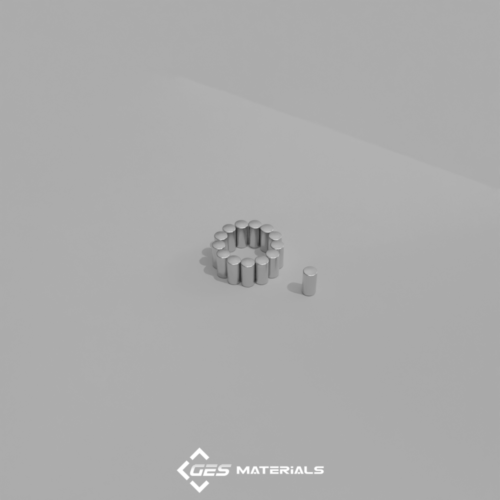

With poles located on the sides of the cylinder, they attract side-to-side, as shown in the reference image below.

This size is also available:

Axially magnetized in Grade N52: Part number D24-N52
Axially magnetized in Grade N42: Part number D24
