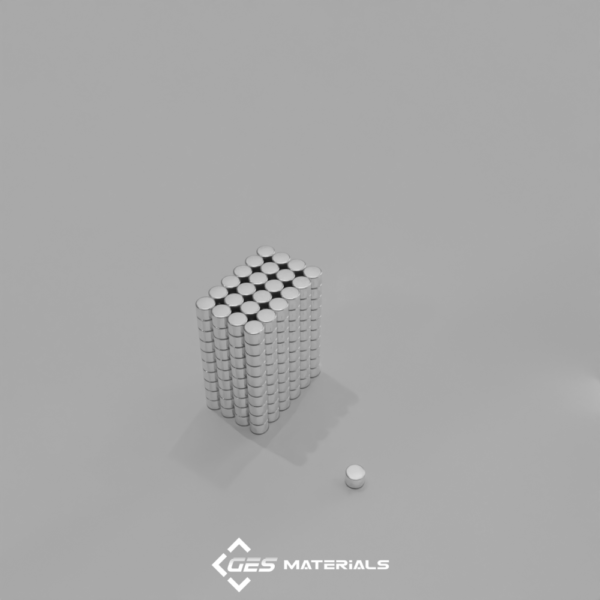

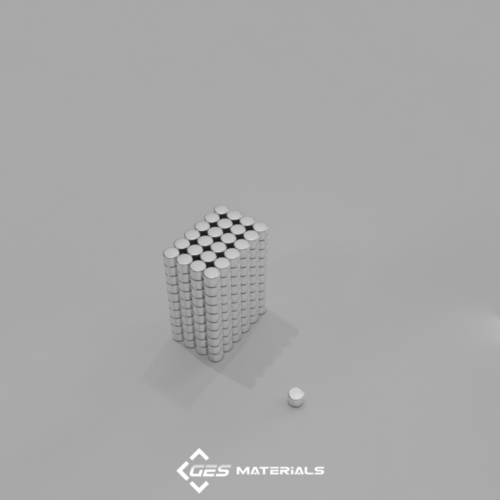

1/8 x 1/10 Inch Disc Magnet | D2H1-N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Size	0.125 x 0.1 Inch ( Diameter x Thickness )
Tolerances	±0.004 in (.1mm)
Grade	N42
Coating	Nickel-Copper-Nickel (Ni-Cu-Ni)
Magnetization Direction	Axially Magnetized

Description:

Dimensions: 1/8″ dia. x 1/10″ thick
Size:0.125 x 0.1 Inch ( Diameter x Thickness )
Metric Size:3.17 x 2.54 mm ( Diameter x Thickness )
Tolerances:±0.004 in (.1mm)
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.0533 oz(1.51 g)
Pull Force, Case 1: 0.62 lbs(0.28 kg)
Pull Force, Case 2: 0.85 lbs(0.39 kg)
Surface Field: 5597 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

Due to popular demand, we now offer a 1/8″ diameter disc magnet in the rare and precise 1/10″ thickness. This size is accurately manufactured to a true 0.100″ ±0.004″, making it ideal for applications requiring tight tolerances in a compact form.
