3/16 x 3/8 Inch Diametric Cylinder Magnet | D36DIA-N42 Magnets

Additional information

Description:

Dimensions: 3/16″ dia. x 3/8″ thick
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Diametrical
Weight: 0.0449 oz. (1.27 g)
Pull Force, Case 1: 2.84 lbs
Pull Force, Case 2: 3.94 lbs
Surface Field: 6757 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These diametrically magnetized cylinders are truly unique.

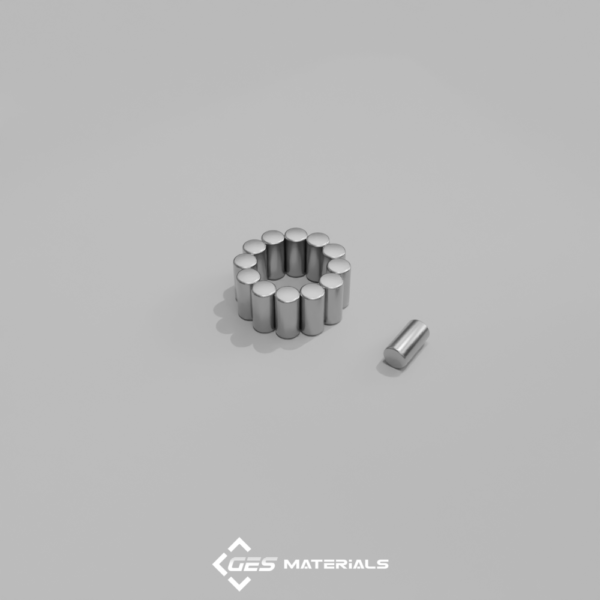

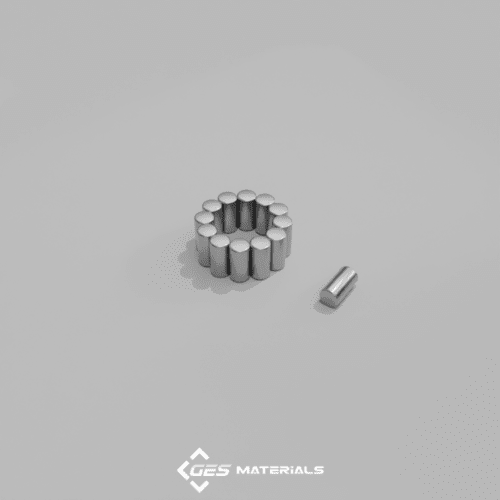

Magnetized perpendicular to their length, the poles are located on the curved sides rather than the flat ends. This orientation causes them to attract side-by-side with strong force, enabling shapes and configurations that axially magnetized magnets cannot achieve—see the bottom-left image for an example. These magnets offer a distinctive and fascinating magnetic experience.

This size is also available:
