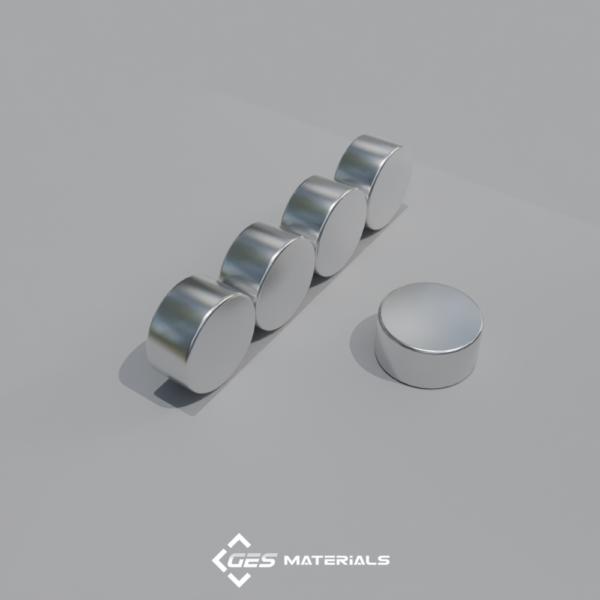

3/4 x 3/8 Inch Diametric Disc Magnet | DC6DIA-N42 Maagnets

Additional information

Description:

Dimensions: 3/4″ dia. x 3/8″ thick
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Diametrical
Weight: 0.72 oz. (20.4 g)
Pull Force, Case 1: 10.73 lbs
Pull Force, Case 2: 15.06 lbs
Surface Field: 6503 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These diametrically magnetized discs are exceptionally powerful. Unlike standard axially magnetized discs, these are magnetized perpendicular to the cylinder’s axis, meaning they attract side-to-side with impressive force. This unique orientation makes them feel even stronger in use and slightly more challenging to handle compared to axially magnetized discs of the same size.

This size is also available in an axially magnetized version as part number DC6, and in Grade N52 with a black nickel plating as part number DC6B-N52.
