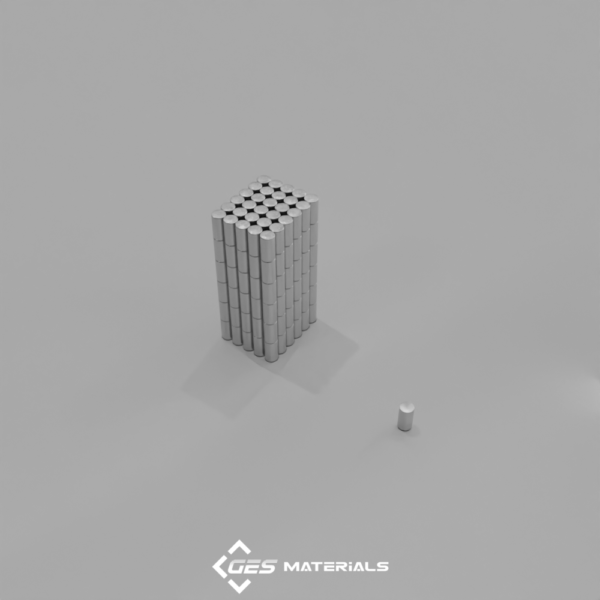

1/10 dia.x 3/16 inch thick Cylinder Magnets | DH13 Magnet

Additional information

Facebook
Twitter
LinkedIn

Description:

  • Dimensions: 1/10″ dia. x 3/16″ thick
  • Tolerances: ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N42
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Axial (Poles on Flat Ends)
  • Weight: 0.00639 oz. (0.181 g)
  • Pull Force, Case 1: 0.52 lbs
  • Pull Force, Case 2: 0.58 lbs
  • Surface Field: 6377 Gauss
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe

Applications:

The DH13 joins our precision magnet lineup with a tightly controlled 0.100″ (±0.004″) diameter. Engineered for miniaturized applications, these magnets are ideal for high-density electronics, sensitive sensors, and compact medical devices. This traditionally hard-to-source diameter is now available at a competitive price point.
