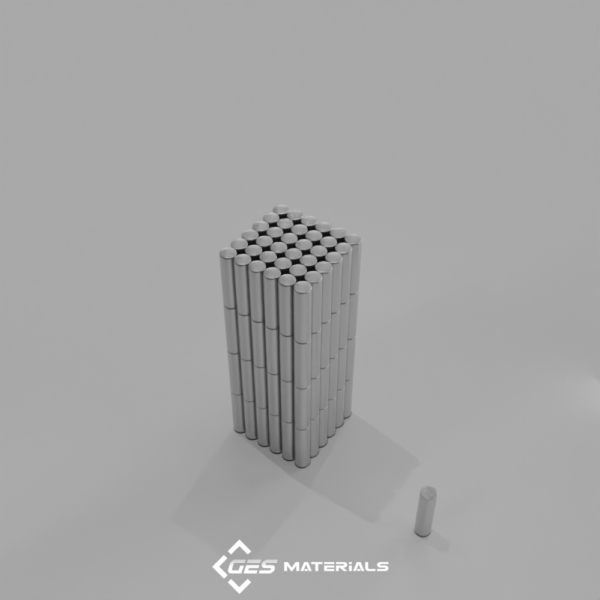

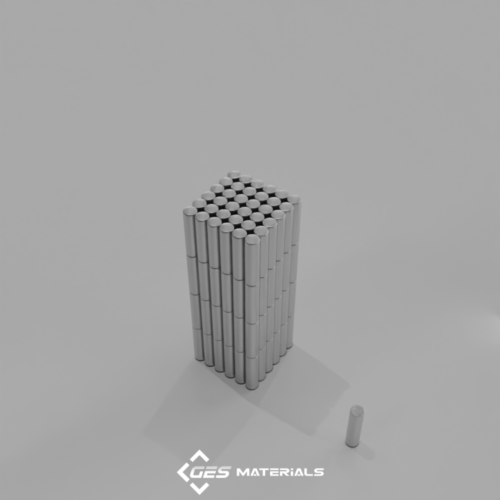

1/10 dia.x 3/8 inch thick Cylinder Magnets | DH16 Magnet

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1/10 dia.x 3/8 inch thick Cylinder Magnets | DH16 Magnet

Additional information

Description:

Dimensions: 1/10″ dia. x 3/8″ thick
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.0127 oz. (0.362 g)
Pull Force, Case 1: 0.59 lbs
Pull Force, Case 2: 0.59 lbs
Surface Field: 6542 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

The DH16 represents the latest addition to our precision magnet series, engineered to exacting 0.100″ (±0.004″) diameter specifications. This high-demand size has been specifically developed to address miniaturization requirements across multiple industries, including:

• Microelectronics and sensor technologies
• Medical device applications
• Precision engineering solutions

Additionally, these components demonstrate excellent versatility for:

Scale modeling and prototyping
Educational and scientific demonstrations
Office and organizational applications

With their combination of precise dimensions and reliable magnetic performance, the DH16 series delivers optimal solutions for both technical and commercial applications.
