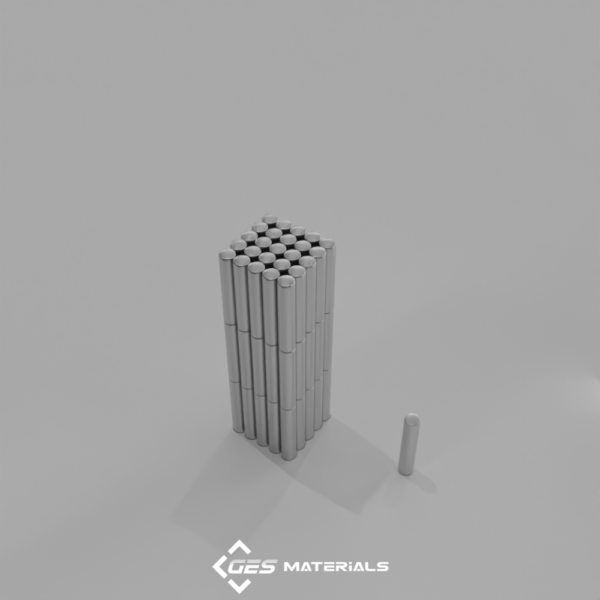

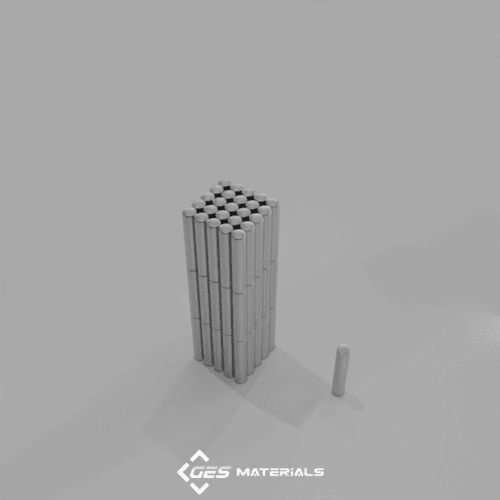

1/10 dia.x 1/2 inch thick Cylinder Magnets | DH18 Magnet

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1/10 dia.x 1/2 inch thick Cylinder Magnets | DH18 Magnet

Additional information

Description:

Dimensions: 1/10″ dia. x 1/2″ thick
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.0170 oz. (0.483 g)
Pull Force, Case 1: 0.60 lbs
Pull Force, Case 2: 0.60 lbs
Surface Field: 6567 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

DH18 magnets – the perfect 0.100″ (±0.004″) solution for modern miniaturized applications. These versatile magnets are ideal for electronics, sensors, and medical devices, while also being great for hobbies, crafts, and everyday office use. Small size, big performance!
