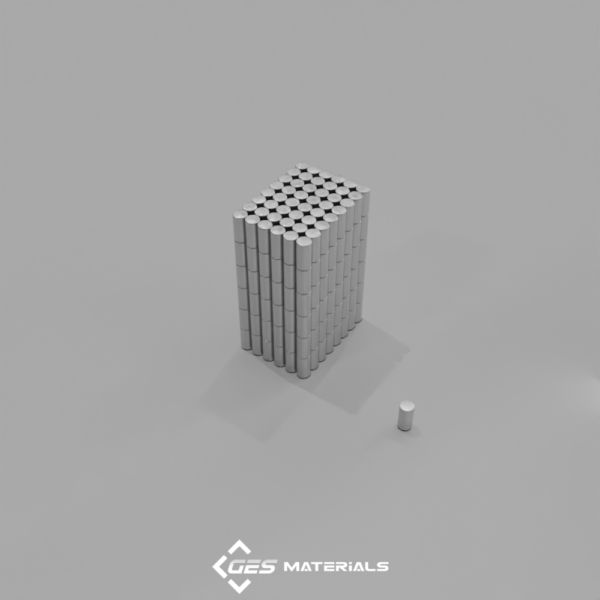

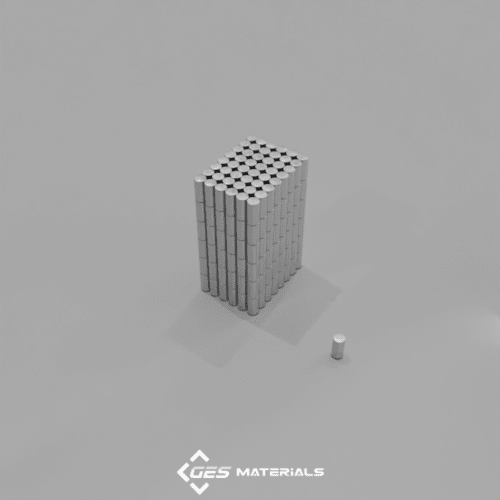

1/10 dia.x 2/10 inch thick Cylinder Magnets | DH1H2 Magnet
INQUIRY

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1/10 dia.x 2/10 inch thick Cylinder Magnets | DH1H2 Magnet

Categories , ,

Additional information

Facebook
Twitter
LinkedIn

Description:

  • Dimensions: 1/10″ dia. x 2/10″ thick
  • Tolerances: ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N42
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Axial (Poles on Flat Ends)
  • Weight: 0.00681 oz. (0.193 g)
  • Pull Force, Case 1: 0.53 lbs
  • Pull Force, Case 2: 0.58 lbs
  • Surface Field: 6403 Gauss
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe

Applications:

The DH1H2 is one of our latest additions, boasting a precise 0.100″ (±0.004″) diameter. These compact magnets are in high demand due to their ideal size for modern miniaturized electronics, sensors, and medical devices.
