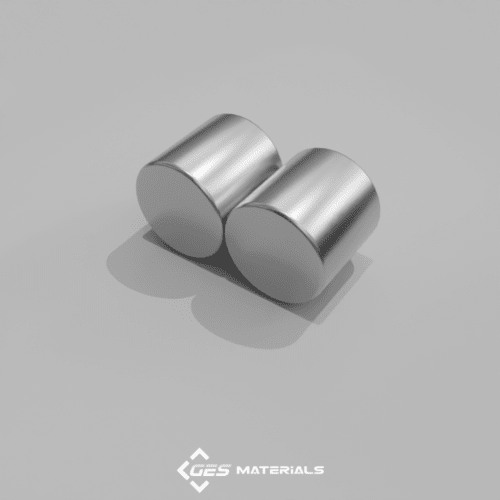

1 x 1 Inch Diametric Cylinder Magnet | DX0X0DIA-N42 Magnets

Additional information

Description:

Dimensions: 1″ dia. x 1″ thick
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Diametrical
Weight: 3.41 oz. (96.5 g)
Pull Force, Case 1: 45.86 lbs
Pull Force, Case 2: 55.37 lbs
Surface Field: 7303 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

The diametrically magnetized DX0X0DIA cylinder magnets are extremely powerful and should only be handled by those experienced with strong neodymium magnets. Magnetized perpendicular to the cylinder’s axis, they attract with great force “side-to-side.” These magnets often feel stronger and are more challenging to handle than their axially magnetized counterparts of the same size. Exercise caution and plan when using them.

This size is also available in grade N52 as DX0X0-N52 and axially magnetized as DX0X0.
