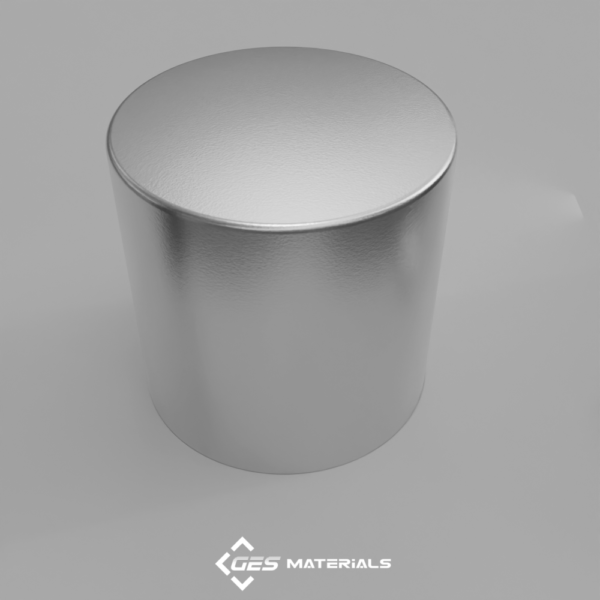

2 x 2 Inch Cylinder/Rod Magnet | DY0Y0-N52 Magnets

Additional information

Reddit
X
LinkedIn
WhatsApp

Description:

  • Dimensions: 2″ dia. x 2″ thick
  • Tolerances: ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N52
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Axial (Poles on Flat Ends)
  • Weight: 27.2 oz. (772 g)
  • Pull Force, Case 1: 377.6 lbs
  • Pull Force, Case 2: 377.6 lbs
  • Surface Field: 6619 Gauss
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 14,800 Gauss
  • BHmax: 52 MGOe

Applications:

The DY0Y0-N52 is one of the strongest neodymium magnets we offer, designed for only the most demanding holding applications. With immense magnetic strength, this magnet should only be handled by experienced users familiar with the safe handling of large rare-earth magnets.

⚠️ Extreme Caution Required:
Two of these magnets will lock together with such force that they cannot be separated by hand. They can easily pinch, crush, or cause serious injury if mishandled. We strongly recommend handling them with the assistance of another person.
Before purchasing, you must read and understand our [Neodymium Magnet Safety Page] and agree to our Terms and Conditions.

These magnets are extremely dangerous if used improperly. Handle with care.
