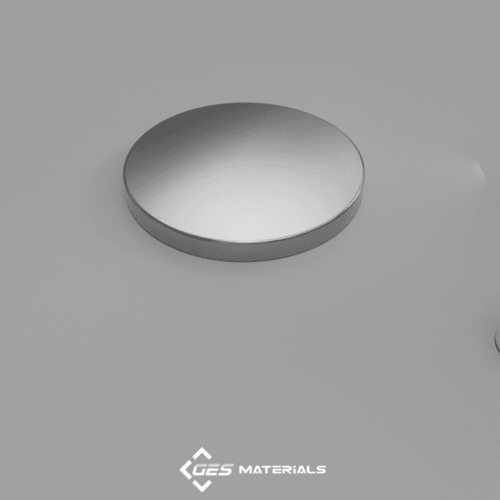

2 1/2 x 1/4 Inch Disc Magnet | DY84 N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

2 1/2 x 1/4 Inch Disc Magnet | DY84 N42 Magnets

Additional information

Description:

Dimensions: 2 1/2″ dia. x 1/4″ thick
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 5.32 oz. (150.8 g)
Pull Force, Case 1: 54.70 lbs
Pull Force, Case 2: 274.7 lbs
Surface Field: 1294 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These high-strength 2.5-inch neodymium discs are ideal for a wide range of heavy-duty holding applications. With a 1/4″ thickness, the DY84 offers impressive magnetic force in a low-profile form, but this also means they must be handled with extreme care.

⚠️ Warning: These magnets can pinch severely and may cause injury if mishandled. They are not suitable for inexperienced users.
Please ensure you read and understand our [Neodymium Magnet Safety Page] before ordering.
