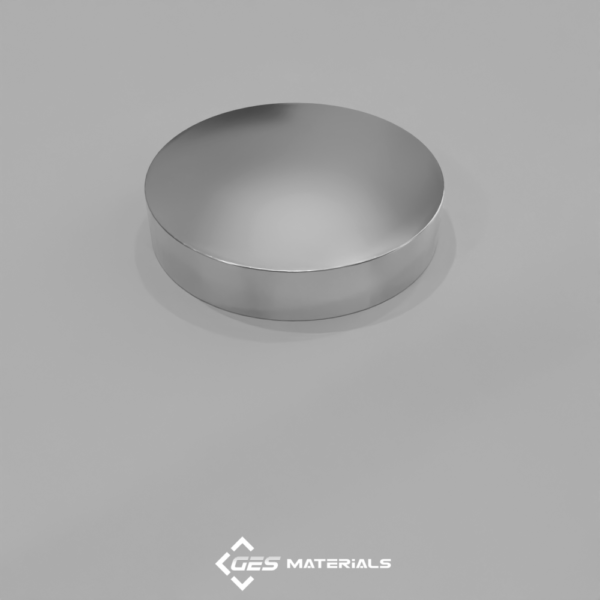

2 1/2 x 1/2 Inch Disc Magnet | DY88 N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

2 1/2 x 1/2 Inch Disc Magnet | DY88 N42 Magnets

Additional information

Description:

Dimensions: 2 1/2″ dia. x 1/2″ thick
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 10.64 oz. (301.7 g)
Pull Force, Case 1: 127.0 lbs
Pull Force, Case 2: 282.3 lbs
Surface Field: 2451 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These neodymium discs are extremely powerful and should be handled only by individuals with experience working with strong magnets. Improper use can result in severe pinching or painful injury.

⚠️ Handle with extreme caution. Magnets of this size demand careful handling and full attention at all times.
Before purchasing, please make sure to read and understand our [Neodymium Magnet Safety Page].
