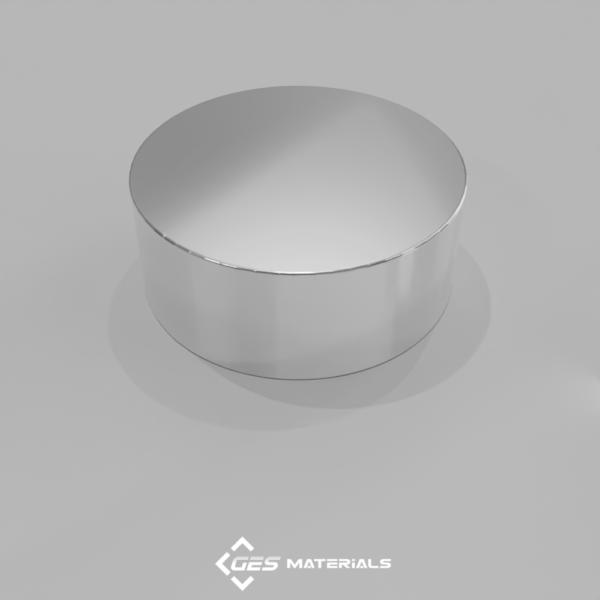

2 1/2 x 1 Inch Disc Magnet | DY8X0-N52 Magnets

Additional information

Description:

Dimensions: 2 1/2″ dia. x 1″ thick
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 21.3 oz. (603.4 g)
Pull Force, Case 1: 376.4 lbs
Pull Force, Case 2: 376.4 lbs
Surface Field: 4623 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

Applications:

These discs are very powerful and should only be handled by experienced users familiar with the safe handling of strong neodymium magnets.

⚠️ Warning: Improper handling can result in serious pinching injuries. Always use extreme caution when working with magnets of this size.
Before purchasing, please make sure to read and understand our [Neodymium Magnet Safety Page].
