3 x 1/8 Inch Disc Magnet | DZ02 N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

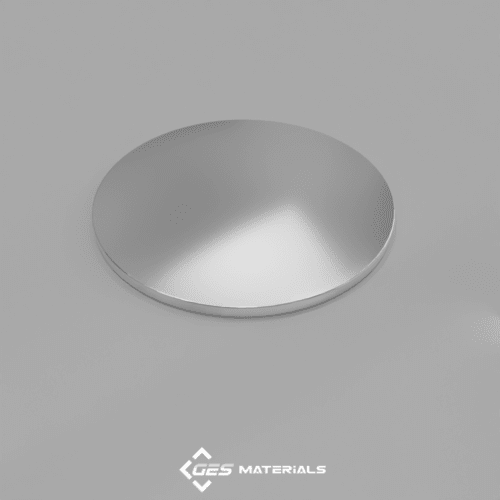

3 x 1/8 Inch Disc Magnet | DZ02 N42 Magnets

Additional information

Description:

Dimensions: 3″ dia. x 1/8″ thick
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 3.83 oz. (109 g)
Pull Force, Case 1: 40.50 lbs
Pull Force, Case 2: 324.4 lbs
Surface Field: 548 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

The DZ02 is a massive 3-inch neodymium disc magnet, designed for heavy-duty holding applications that require exceptional strength. Due to its incredible magnetic force, it is not recommended for beginners.

⚠️ Warning: This magnet is extremely powerful and should only be handled by users familiar with large neodymium magnet safety procedures.
Improper handling can result in severe pinching or injury, especially if magnets are allowed to snap together. Always use extreme caution, and consider working with an assistant when handling magnets of this size.
