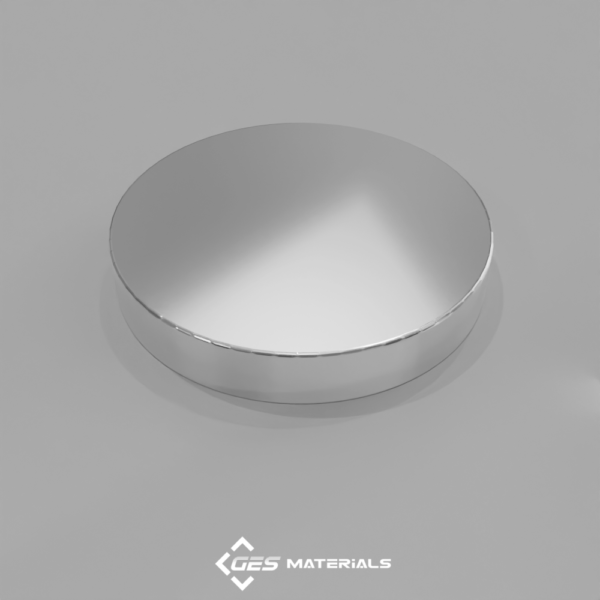

3 x 1/2 Inch Disc Magnet | DZ08-N52 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

3 x 1/2 Inch Disc Magnet | DZ08-N52 Magnets

Additional information

Description:

Dimensions: 3″ dia. x 1/2″ thick
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 15.32 oz. (434 g)
Pull Force, Case 1: 184.4 lbs
Pull Force, Case 2: 427.2 lbs
Surface Field: 2340 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

Applications:

These 3-inch neodymium disc magnets are among the most powerful magnets available today. Designed for only the strongest holding applications, they exhibit extraordinary magnetic force, so strong that two of them will be virtually impossible to separate by hand.

⚠️ Caution: These magnets are extremely powerful and should only be handled by experienced users familiar with large neodymium magnets.
Handling them alone is not recommended—use the assistance of another person whenever possible.
Like all rare-earth magnets of this size, improper handling can lead to severe pinching, crushing injuries, or other serious physical harm. These are not toys and must be treated with the utmost caution and respect.

Before purchasing:

You must read and understand our [Neodymium Magnet Safety Page].
You must agree to our Terms and Conditions.
THESE MAGNETS ARE EXTREMELY DANGEROUS. HANDLE WITH CARE.
