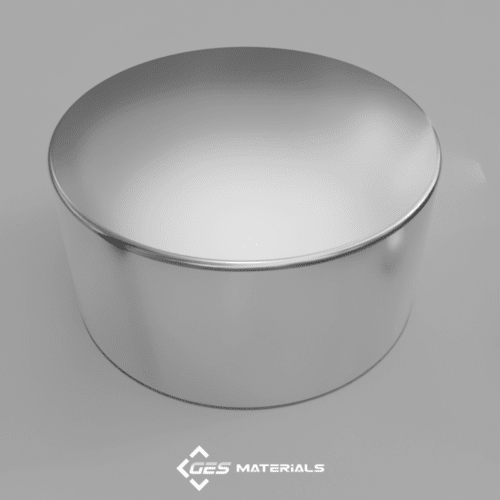

3 x 1 1/2 Inch Disc Magnet | DZ0X8-N52 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

3 x 1 1/2 Inch Disc Magnet | DZ0X8-N52 Magnets

Additional information

Description:

Dimensions: 3″ dia. x 1 1/2″ thick
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 45.97 oz. (1303 g)
Pull Force, Case 1: 625.2 lbs
Pull Force, Case 2: 625.2 lbs
Surface Field: 5233 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

Applications:

These massive 3-inch neodymium disc magnets are among the most powerful magnets available on the market. Designed for only the strongest holding applications, they offer incredible magnetic force, so strong that two of them will be nearly impossible to separate by hand.

⚠️ Warning: These magnets are extremely dangerous.
They can pinch, crush, or cause serious injury if not handled with extreme care. We strongly recommend handling them with two people.
Before purchasing, you must read and understand our [Neodymium Magnet Safety Page] and agree to our Terms and Conditions.

These are not for beginners. Use only if you are experienced in handling large neodymium magnets.
