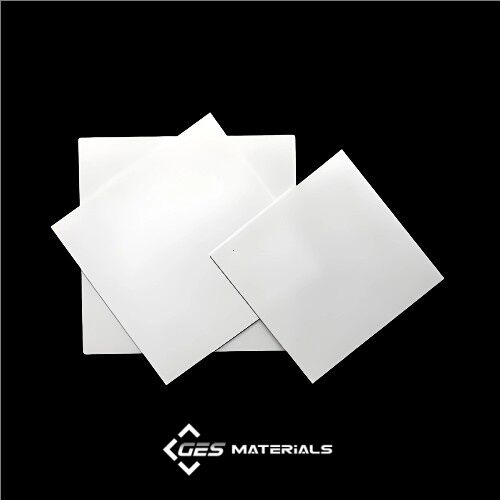

Pyrolytic Boron Nitride Sheet , PBN Sheet

Categories Boron Nitride, Ceramics Materials

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Material	Pyrolytic Boron Nitride (PBN)
Thickness	0.5mm~4mm
Purity	99.99%
Shape	Sheet

Description:

Pyrolytic Boron Nitride (PBN) Sheets from GESmaterials are produced through the Chemical Vapor Deposition (CVD) process, where BCl₃ and NH₃ gases react at high temperatures and low pressures to form ultra-pure boron nitride. This process ensures purity levels above 99.99%, with total metallic impurities less than 100 ppm. Compared to conventional hot-pressed BN ceramics, PBN sheets deliver exceptional purity, uniform microstructure, and near-theoretical density, making them highly reliable in demanding applications.

Key Properties

Ultra-High Purity: >99.99%, ensuring contamination-free performance in sensitive environments.
High Density & Strength: Near-theoretical density with excellent mechanical stability.
Outstanding Thermal Stability: Operates reliably at temperatures exceeding 2000 °C in inert atmospheres.
Thermal Shock Resistance: Capable of withstanding rapid heating and cooling cycles without damage.
Superior Chemical Resistance: Inert against most molten metals, acids, and corrosive environments.
Low Outgassing: Suitable for UHV (ultra-high vacuum) and semiconductor processes.

Applications:

Substrates in Semiconductor Manufacturing: Provides a stable, non-reactive base for thin film deposition and epitaxial growth.
Insulators in High-Temperature Furnaces: Ensures thermal stability and insulation at extreme operating conditions.
Microwave and RF Components: Serves as a high-purity dielectric material in electronic and communication devices.
Vacuum Sealing and Gasket Material: Used in UHV systems where contamination control is critical.
Protective Barriers in Chemical Processing: Functions as a chemically inert shield in corrosive and high-purity environments.

Item	value	Unit
lattice constant	a:2.504×10-10 c:6.692×10-10	μ m
density	2.0-2.19	g/cm3
resistivity	3.11×1011	Ω·cm
tensile strength（ab）	153.86	N/mm2
bend strength(c)	243.63	N/mm2
bend strength(ab)	197.76	N/mm2
elastic modulus	235690
thermal conductivity	“a” direction “c” direction
thermal conductivity(200℃)	60 2.60	W/m·k
thermal conductivity(900℃)	43.70 2.80	W/m·k
dielectric strength（at room temperature）	56	KV/mm

Why Choose GESmaterials PBN Sheets?
With superior purity, reliability, and thermal performance, GESmaterials PBN Sheets are the preferred choice for industries including semiconductors, electronics, high-temperature processing, and advanced materials research, where both performance and purity are essential.
