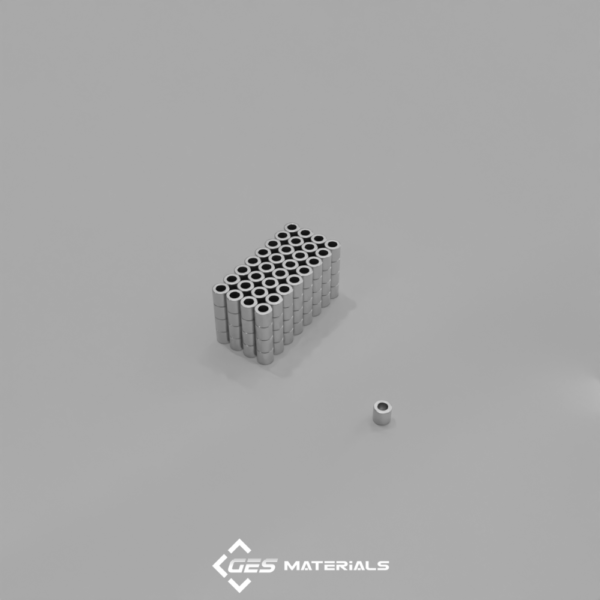

1/8 od x 1/16 id x 1/8 inch thick Ring Magnets | R212 Magnet

Categories , ,

Additional information

Facebook
Twitter
LinkedIn

Description:

  • Dimensions: 1/8″ od x 1/16″ id x 1/8″ thick
  • Tolerances: ±0.004″ x ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N42
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Axial (Poles on Flat Ends)
  • Weight: 0.00498 oz. (.141 g)
  • Pull Force, Case 1: 0.72 lbs
  • Pull Force, Case 2: 0.72 lbs
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe

Applications:

These miniature rings offer remarkable versatility, making them ideal for intricate arts and crafts, scientific experiments, or virtually any creative application one might envision.
