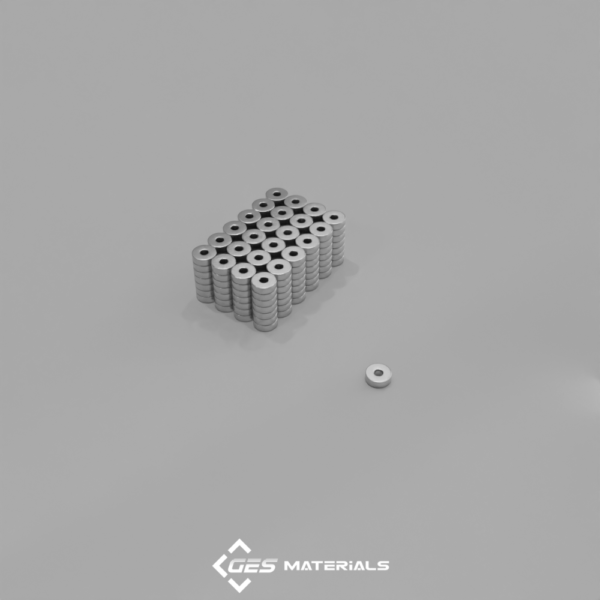

3/16 od x 1/16 id x 1/16 inch thick Ring Magnets | R311 Magnet
INQUIRY

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

3/16 od x 1/16 id x 1/16 inch thick Ring Magnets | R311 Magnet

Categories , ,

Additional information

Facebook
Twitter
LinkedIn

Description:

  • Dimensions: 1/8″ od x 1/16″ id x 1/16″ thick
  • Tolerances: ±0.004″ x ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N52
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Axial (Poles on Flat Ends)
  • Weight: 0.00249 oz. (.0707 g)
  • Pull Force, Case 1: 0.44 lbs
  • Pull Force, Case 2: 0.79 lbs
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 14,800 Gauss
  • BHmax: 52 MGOe

Applications:

These are the smallest rings we offer—perfect for delicate arts and crafts projects or any application requiring a compact ring. Manufactured in grade N42, they are available under part number R211.
