3/16 od x 1/16 id x 3/16 inch thick Ring Magnets | R313 Magnet
INQUIRY

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

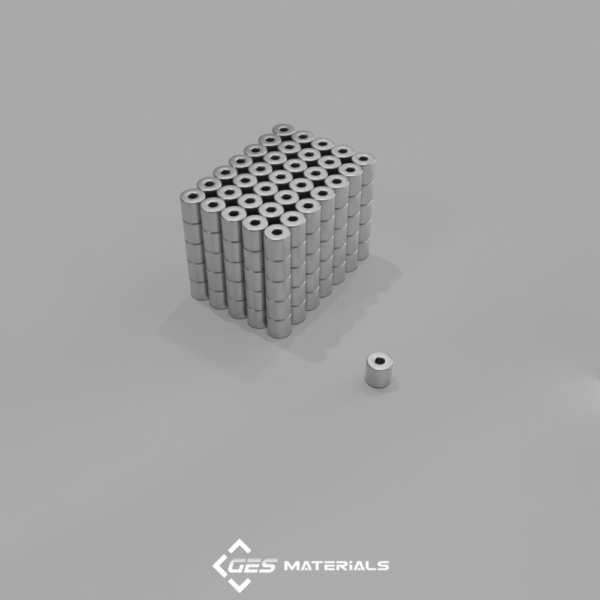

3/16 od x 1/16 id x 3/16 inch thick Ring Magnets | R313 Magnet

Categories , ,

Additional information

Facebook
Twitter
LinkedIn

Description:

  • Dimensions: 3/16″ od x 1/16″ id x 3/16″ thick
  • Tolerances: ±0.004″ x ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N42
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Axial (Poles on Flat Ends)
  • Weight: 0.0200 oz. (0.566 g)
  • Pull Force, Case 1: 1.66 lbs
  • Pull Force, Case 2: 1.85 lbs
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe

Applications:

These small rings are exceptionally versatile and practical, making them perfect for use in arts and crafts, scientific experiments, educational demonstrations, and a wide range of other creative applications.
