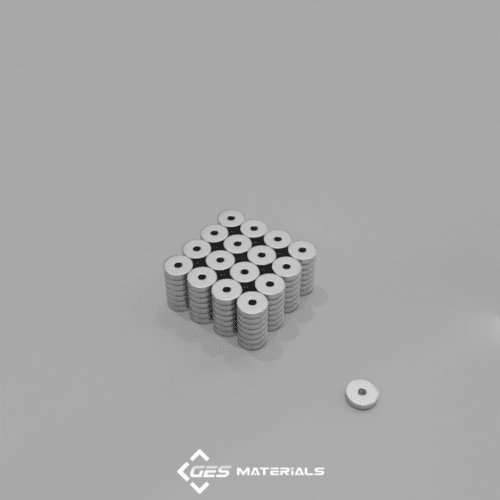

1/4 od x 1/16 id x 1/16 inch thick Ring Magnets | R411 Magnet

Categories , ,
1/4 od x 1/16 id x 1/16 inch thick Ring Magnets | R411 Magnet
INQUIRY

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Reddit
X
LinkedIn
WhatsApp

Description:

  • Dimensions: 1/4″ od x 1/16″ id x 1/16″ thick
  • Tolerances: ±0.004″ x ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N42
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Axial (Poles on Flat Ends)
  • Weight: 0.0125 oz. (0.353 g)
  • Pull Force, Case 1: 1.14 lbs
  • Pull Force, Case 2: 3.36 lbs
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe

Applications:

These slender rings are ideal for stitching into crafts, clothing, handbags, and more. Their low profile allows for the discreet integration of small yet powerful magnets into virtually any project.
