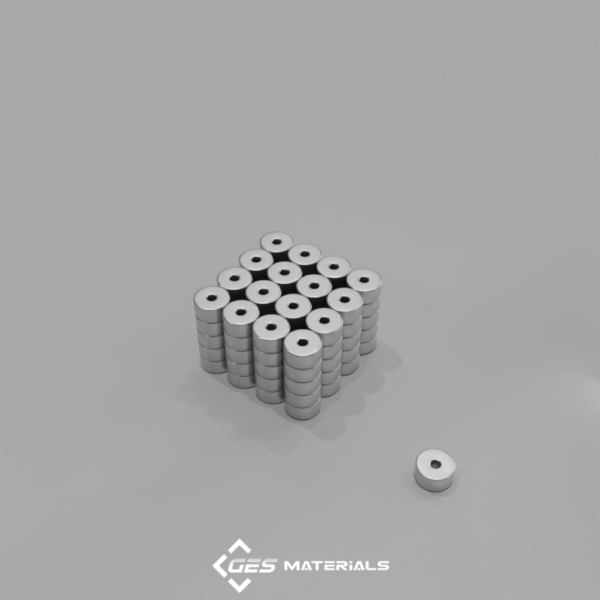

1/4 od x 1/16 id x 1/8 inch thick Ring Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1/4 od x 1/16 id x 1/8 inch thick Ring Magnets | R412 Magnet

Additional information

Description:

Dimensions: 1/4″ od x 1/16″ id x 1/8″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.0249 oz. (0.707 g)
Pull Force, Case 1: 2.18 lbs
Pull Force, Case 2: 3.49 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These small rings are perfect for attaching to string, making them ideal for suspending items from metal drop ceiling grids or other metal frameworks. They’re great for hanging decorations, signs, and various other objects. Versatile and convenient, they’re also excellent for a wide range of arts and crafts applications.
