1/4 x 1/4 Inch Magnetic Clasp | R414CL N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1/4 x 1/4 Inch Magnetic Clasp | R414CL N42 Magnets

Additional information

Description:

Dimensions: 1/4″od x (1/10″ x 1/21″) x 1/4″
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.0405 oz. (1.15 g)
Pull Force: 2.89 lbs
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

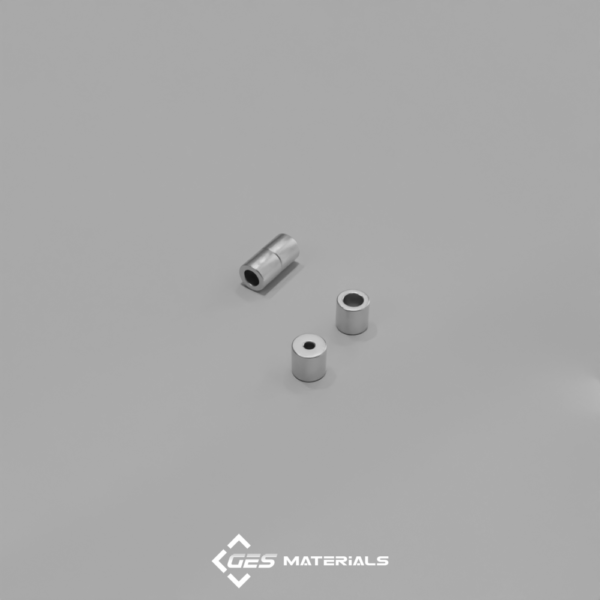

The rings are sold in pairs because there are two different magnetization directions on them that allow them to function as clasps. One magnet in the pair has the north pole facing the countersunk hole side, while the other has the south pole on that side. This configuration enables the two faces to align flat, as a knot fits inside the countersunk hole in the ring. The clasps are nickel plated for a shiny, silver finish. The small hole measures 1/21″ and the large hole measures 1/10″.
