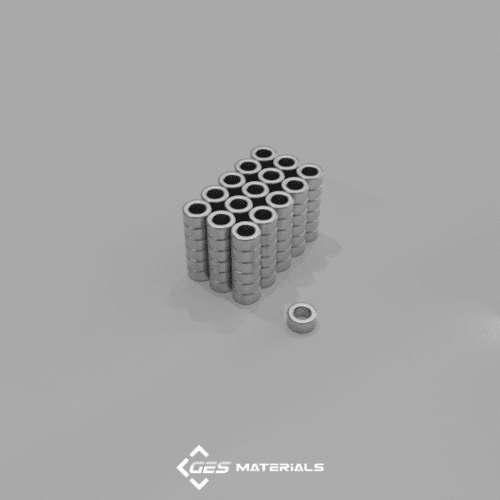

1/4 x 1/8 Inch Ring Magnet | R422 N42 Magnets

Categories Neodymium Magnets, Neodymium Ring Magnets, Permanent Magnets

1/4 x 1/8 Inch Ring Magnet | R422 N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Description:

Dimensions: 1/4″ od x 1/8″ id x 1/8″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.02 oz. (0.57g)
Pull Force, Case 1: 1.80 lbs
Pull Force, Case 2: 2.80 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

The R422 is a very affordable little ring magnet. It is great for anything you would use a small ring magnet for, such as tying to a string to pick up or hang metal objects, science demonstrations, and mounting with a screw.
