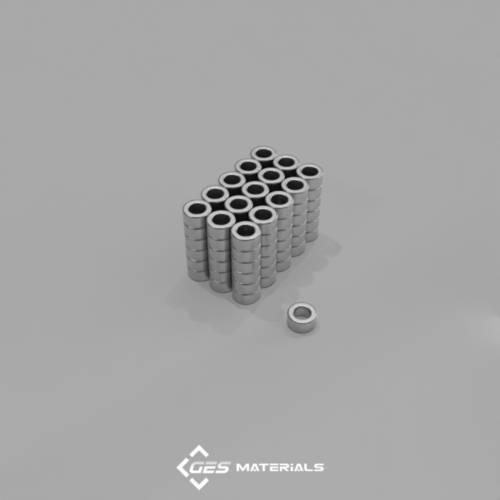

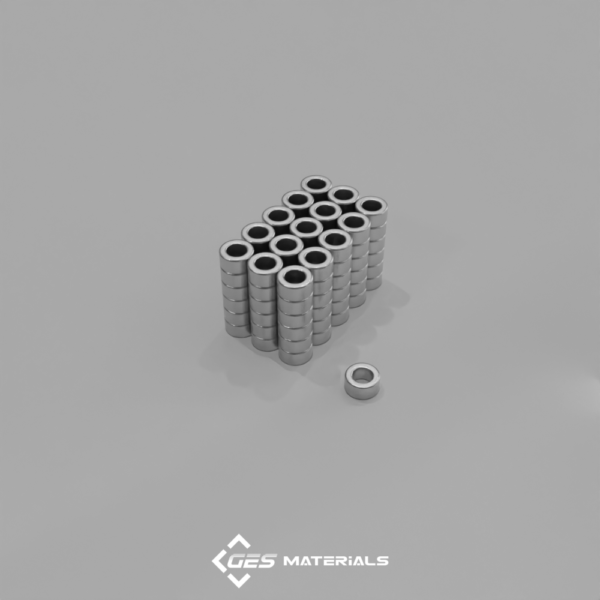

1/4 x 1/8 Inch Ring Magnet | R422 N52 Magnets
INQUIRY

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1/4 x 1/8 Inch Ring Magnet | R422 N52 Magnets

Categories , ,

Additional information

Facebook
Twitter
LinkedIn

Description:

  • Dimensions: 1/4″ od x 1/8″ id x 1/8″ thick
  • Tolerances: ±0.004″ x ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N52
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Axial (Poles on Flat Ends)
  • Weight: 0.02 oz. (0.57g)
  • Pull Force, Case 1: 2.23 lbs
  • Pull Force, Case 2: 3.47 lbs
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 14,800 Gauss
  • BHmax: 52 MGOe

Applications:

The R422-N52 is a very affordable little ring magnet. It is great for anything you would use a small ring magnet for, such as tying to a string to pick up or hang metal objects, science demonstrations and mounting with a screw.
