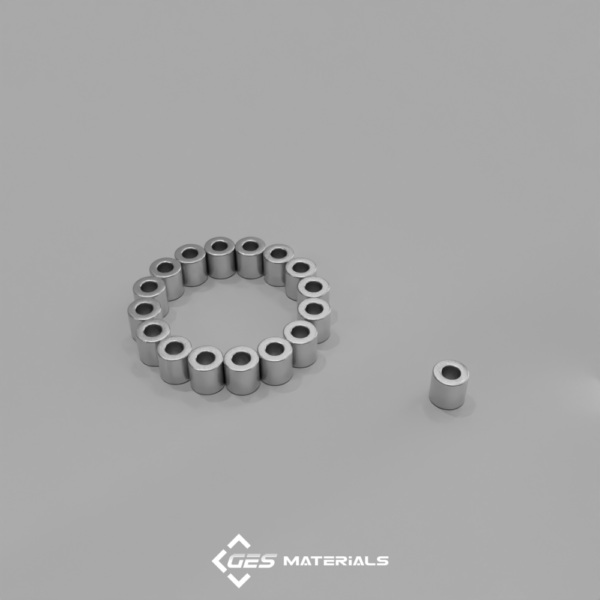

1/4 x 1/4 Inch Diametric Ring Magnet | R424DIA N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1/4 x 1/4 Inch Diametric Ring Magnet | R424DIA N42 Magnets

Additional information

Description:

Dimensions: 1/4″ od x 1/8″ id x 1/4″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Diametrical
Weight: 0.0399 oz. (1.13 g)
Pull Force, Case 1: 1.36 lbs
Pull Force, Case 2: 1.91 lbs
Surface Field: 5299 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These ring magnets are diametrically magnetized, meaning the magnetic poles are located on opposite sides of the curved outer surface, rather than on the flat faces. This perpendicular magnetization makes them ideal for use on rotating shafts—perfect for sensor applications, magnetic couplings, or even small-scale electricity generation.
