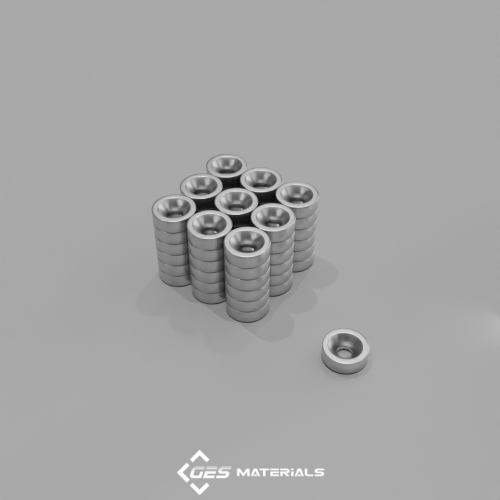

3/8 " Dia x 0.136" ID x 1/8" Thi countersunk Ring Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

3/8 ” Dia x 0.136″ ID x 1/8″ Thi countersunk Ring Magnets | R622CS-P Magnet

Categories Neodymium Countersunk Magnets, Neodymium Magnets

Additional information

Description:

Dimensions: 3/8″ od x 1/8″ thick with countersunk hole for #4 screw

Tolerances: ±0.004″ x ±0.004″ x ±0.004″ x ±0.004″

Material: NdFeB, Grade N42

Plating/Coating: Ni-Cu-Ni (Nickel)

Magnetization Direction: Axial (Poles on Flat Ends)

Weight: 0.106 oz. (3.02 g) (per pair)

Pull Force, Case 1: 3.56 lbs

Pull Force, Case 2: 6.92 lbs

Max Operating Temp: 176ºF (80ºC)

Brmax: 13,200 Gauss

BHmax: 42 MGOe

Applications:

These high-strength countersunk ring magnets are precisely designed to fit #4 flat-head screws, making them ideal for secure and seamless mounting.

Sold in matched pairs, each set includes one magnet with the north pole and one with the south pole on the side with the larger opening, ensuring they attract each other when installed.

Perfect for functional and discreet closures in cabinet doors, handbags, and other custom applications where alignment and holding force are essential.
