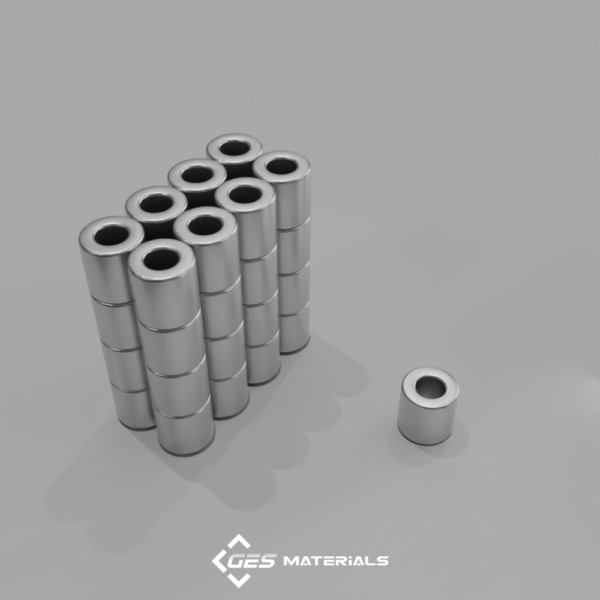

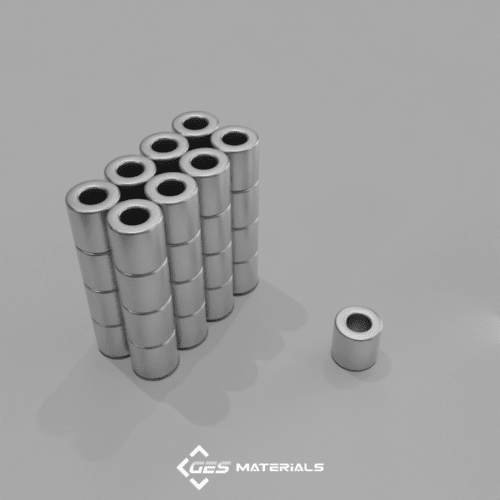

3/8 x 3/8 Inch Ring Magnet | R636 N42 Magnets
INQUIRY

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

3/8 x 3/8 Inch Ring Magnet | R636 N42 Magnets

Categories , ,

Additional information

Facebook
Twitter
LinkedIn

Description:

  • Dimensions: 3/8″ od x 3/16″ id x 3/8″ thick
  • Tolerances: ±0.004″ x ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N42
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Axial (Poles on Flat Ends)
  • Weight: 0.135 oz. (3.82 g)
  • Pull Force, Case 1: 6.20 lbs
  • Pull Force, Case 2: 7.02 lbs
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe

Applications:

The R636 ring magnets are highly versatile and well-suited for a wide range of uses, including repulsion experiments, sensor systems, loudspeakers, and various other magnetic applications.
