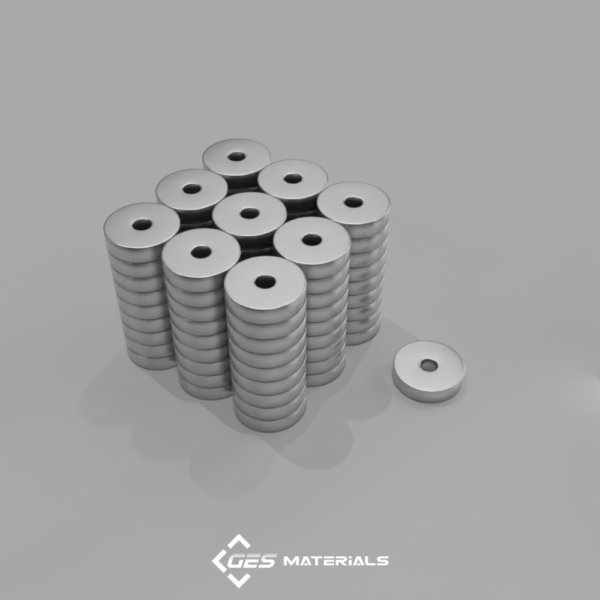

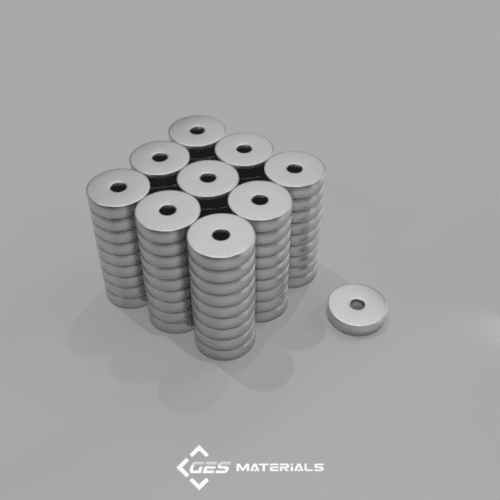

1/2 x 1/8 Inch Ring Magnet | R822 N52 Magnets

Categories , ,

Additional information

Facebook
Twitter
LinkedIn

Description:

  • Dimensions: 1/2″ od x 1/8″ id x 1/8″ thick
  • Tolerances: ±0.004″ x ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N52
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Axial (Poles on Flat Ends)
  • Weight: 0.0998 oz. (2.83 g)
  • Pull Force, Case 1: 7.65 lbs
  • Pull Force, Case 2: 18.72 lbs
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 14,800 Gauss
  • BHmax: 52 MGOe

Applications:

Here we offer this very popular ring magnet in grade N52 for those who simply must have the strongest magnet possible.  Two of these rings will repel each other with great force.
