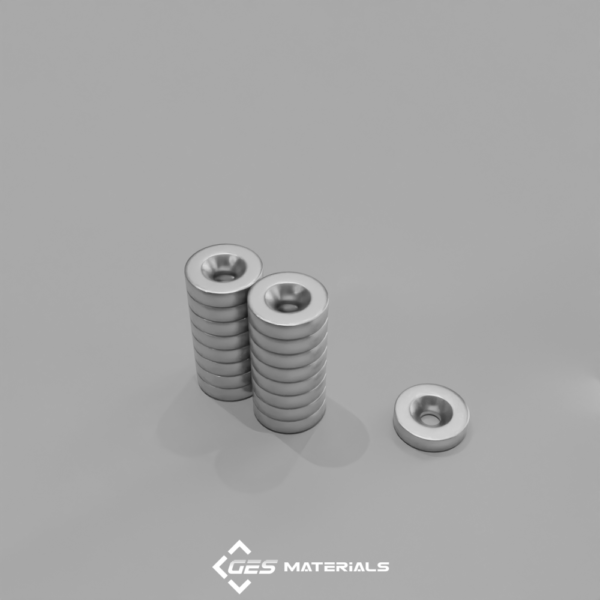

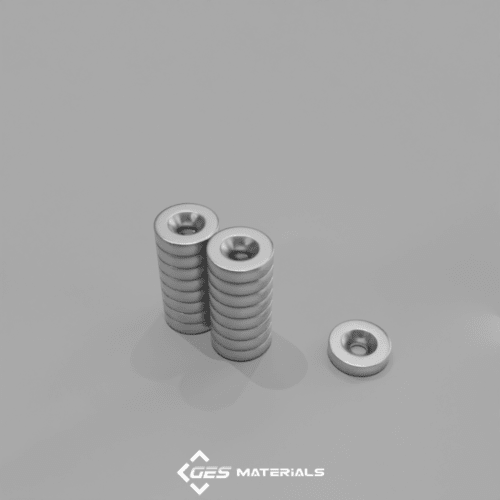

1/2" Dia x 0.136" ID x 1/8" Thi countersunk Ring Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1/2″ Dia x 0.136″ ID x 1/8″ Thi countersunk Ring Magnets | R822CS-P Magnet

Categories Neodymium Countersunk Magnets, Neodymium Magnets

Additional information

Description:

Dimensions: 1/2″ od x 1/8″ thick with countersunk hole for #4 screw

Tolerances: ±0.004″ x ±0.004″ x ±0.004″ x ±0.004″

Material: NdFeB, Grade N42

Plating/Coating: Ni-Cu-Ni (Nickel)

Magnetization Direction: Axial (Poles on Flat Ends)

Weight: 0.197 oz. (5.58 g) (per pair)

Pull Force, Case 1: 5.35 lbs

Pull Force, Case 2: 12.30 lbs

Max Operating Temp: 176ºF (80ºC)

Brmax: 13,200 Gauss

BHmax: 42 MGOe

Applications:

These high-quality, strong countersunk ring magnets are specifically sized to fit #4 flat-head screws. Sold in pairs, each magnet is precisely designed with one having the north pole on the side of the large end of the hole and the other with the south pole on that side. This polarity ensures they attract each other when screwed in, making them ideal for secure fastening applications.

Perfect for a wide range of uses, these magnets are commonly used in door closures and tool hangers, as well as other innovative projects where strong magnetic attraction is needed. Their countersunk design ensures a flush and secure fit when used with flat-head screws.
