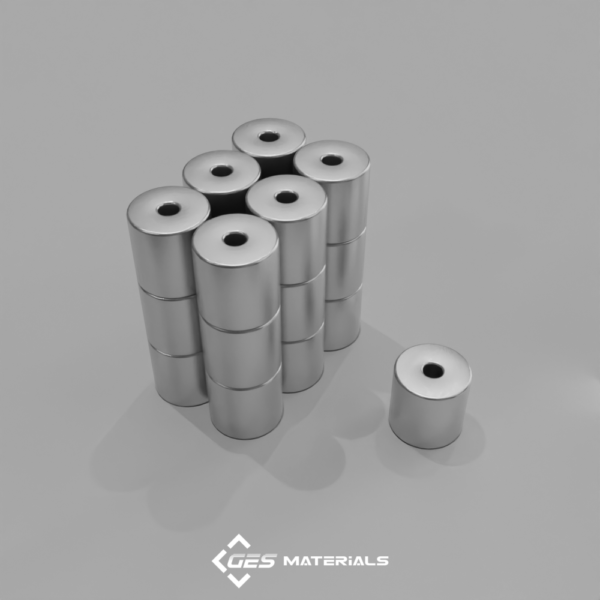

1/2 x 1/2 Inch Ring Magnet | R828 N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1/2 x 1/2 Inch Ring Magnet | R828 N42 Magnets

Additional information

Description:

Dimensions: 1/2″ od x 1/8″ id x 1/2″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.399 oz. (11.31 g)
Pull Force, Case 1: 13.83 lbs
Pull Force, Case 2: 15.47 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

The R828 is a solid, robust magnet featuring a convenient 1/8″ center hole that runs north to south through the magnet. This added feature enhances its functionality, making it even more versatile for mounting, fastening, or creative applications. Its size and strength make it a great choice for both practical and experimental uses—the possibilities are endless.
