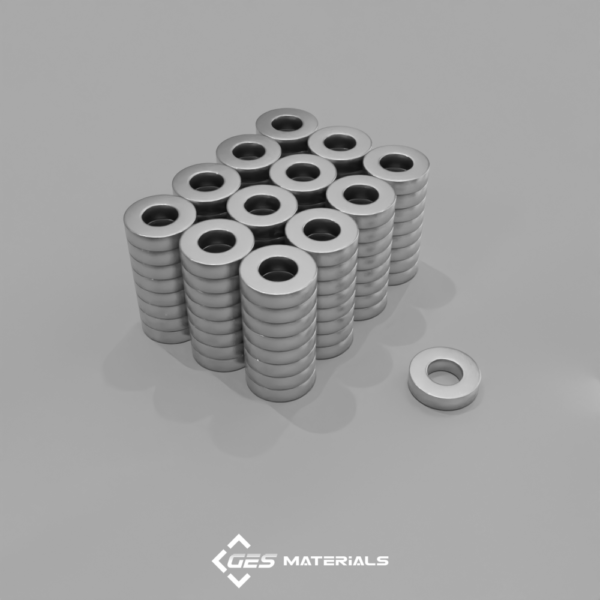

1/2 x 1/8 Inch Ring Magnet | R842 N52 Magnets
INQUIRY

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1/2 x 1/8 Inch Ring Magnet | R842 N52 Magnets

Categories , ,

Additional information

Facebook
Twitter
LinkedIn

Description:

  • Dimensions: 1/2″ od x 1/4″ id x 1/8″ thick
  • Tolerances: ±0.004″ x ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N52
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Axial (Poles on Flat Ends)
  • Weight: 0.0798 oz. (2.26 g)
  • Pull Force, Case 1: 6.63 lbs
  • Pull Force, Case 2: 15.23 lbs
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 13,200 Gauss
  • BHmax: 52 MGOe

Applications:

This magnet matches the size of our popular R842 ring but is made from powerful grade N52 material. It’s a frequently requested size that we’ve now added to our stock. Perfect for science experiments and demonstrations.
