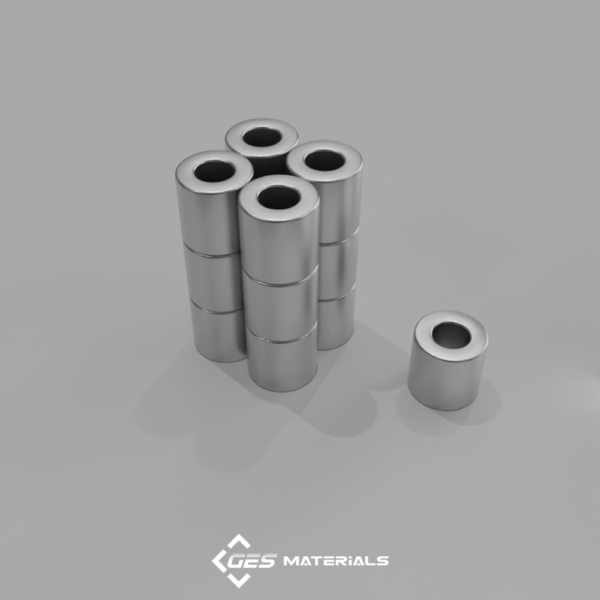

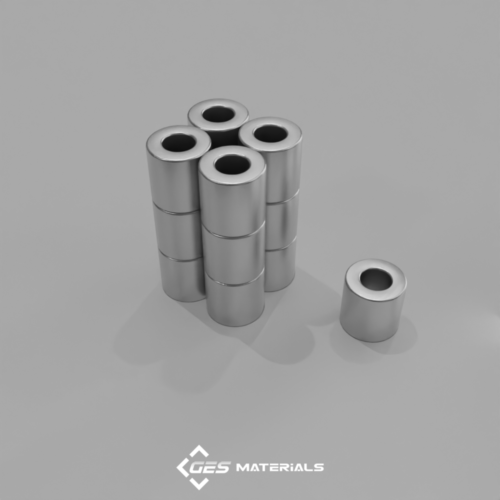

1/2 x 1/2 Inch Ring Magnet | R848 N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1/2 x 1/2 Inch Ring Magnet | R848 N42 Magnets

Categories Neodymium Magnets, Neodymium Ring Magnets, Permanent Magnets

Additional information

Description:

Dimensions: 1/2″ od x 1/4″ id x 1/2″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.319 oz. (9.05 g)
Pull Force, Case 1: 11.33 lbs
Pull Force, Case 2: 12.49 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

Another excellent neodymium ring magnet—perfect for just about any application you can imagine.
