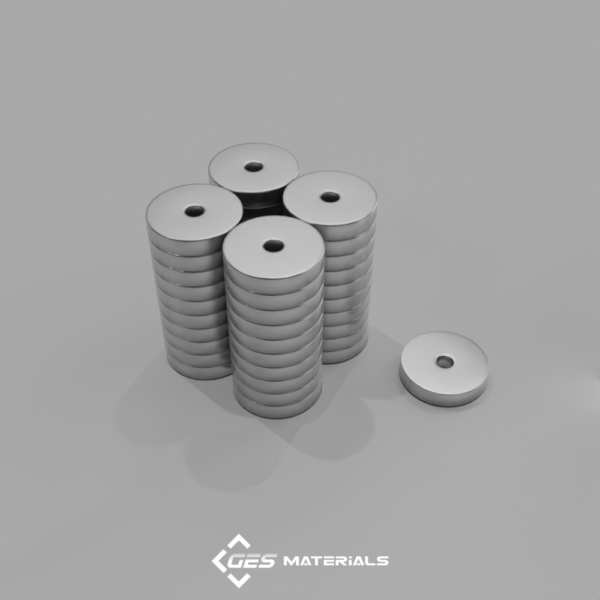

5/8 x 1/8 Inch Ring Magnet | RA22 N42 Magnets
INQUIRY

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Reddit
X
LinkedIn
WhatsApp

Description:

  • Dimensions: 5/8″ od x 1/8″ id x 1/8″ thick
  • Tolerances: ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N42
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Axial (Poles on Flat Ends)
  • Weight: 0.159 oz. (4.52 g)
  • Pull Force, Case 1: 8.02 lbs
  • Pull Force, Case 2: 25.17 lbs
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe

Applications:

The RA22 is a strong, versatile ring magnet. It is similar in size to our RA22CS series but without the countersunk hole. Its compact design makes it ideal for a wide range of applications.
