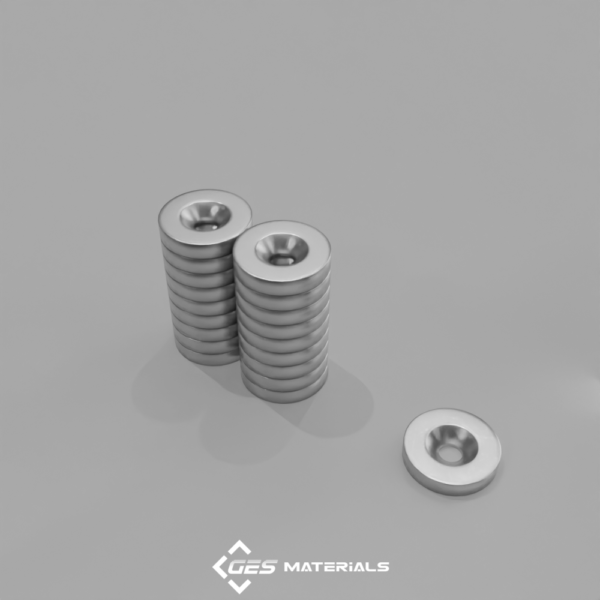

5/8 x 1/8 Inch Countersunk Ring Magnets | RA22CS-P Magnet

Categories , ,

Additional information

Facebook
Twitter
LinkedIn

Description:

  • Dimensions: 5/8″ od x 1/8″ thick with countersunk hole for #6 screw
  • Tolerances: ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N42
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Axial (Poles on Flat Ends)
  • Weight: 0.296 oz. (8.36 g) (per pair)
  • Pull Force, Case 1: 7.15 lbs
  • Pull Force, Case 2: 20.12 lbs
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe

Applications:

The rings are sold as a set of two. One will have the north pole on the side with the large end of the hole and one will have the south pole on that side, so they will attract each other when they are screwed in.
