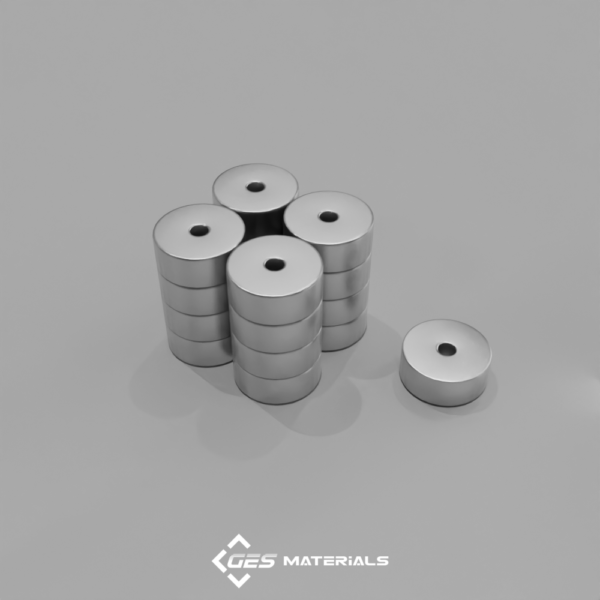

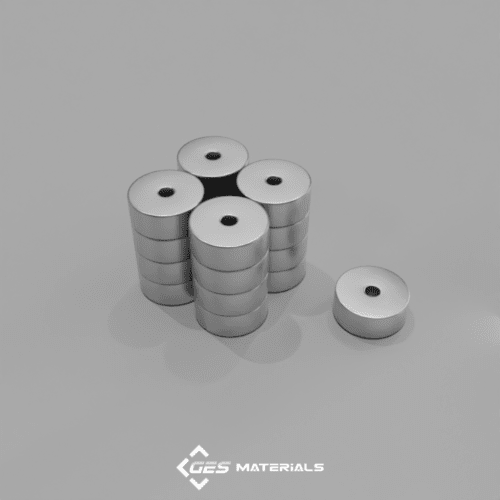

5/8 x 1/4 Inch Ring Magnet | RA24 N42 Magnets

Categories Neodymium Magnets, Neodymium Ring Magnets, Permanent Magnets

5/8 x 1/4 Inch Ring Magnet | RA24 N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Description:

Dimensions: 5/8″ od x 1/8″ id x 1/4″ thick
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.319 oz. (9.05 g)
Pull Force, Case 1: 14.85 lbs
Pull Force, Case 2: 25.37 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

The RA24 is a strong and versatile ring magnet—ideal for signage, displays, woodworking, and more.
