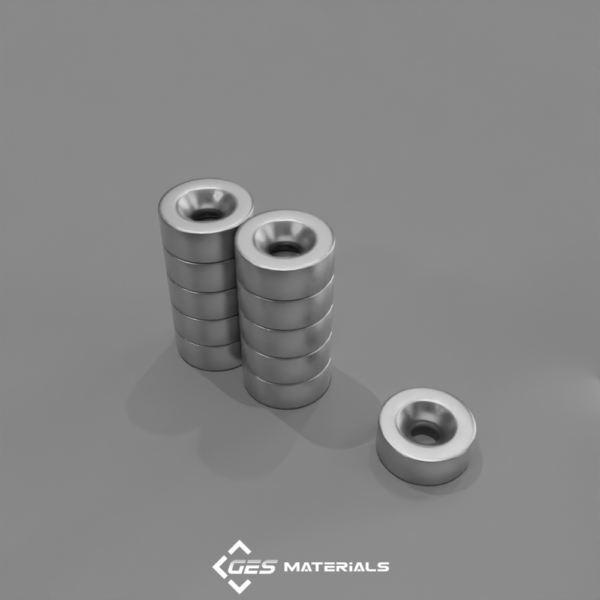

5/8 x 1/4 Inch Countersunk Ring Magnets (#6 screw)

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

5/8 x 1/4 Inch Countersunk Ring Magnets (#6 screw) | RA24DCS Magnet

Additional information

Description:

Dimensions: 5/8″ od x 1/4″ thick w/ holes to accept #6 screw
Tolerances: ±0.004″ x ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.286 oz. (8.11 g)
Pull Force, Case 1: 12.66 lbs
Pull Force, Case 2: 20.32 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

The RA24DCS is a thicker, double-countersunk version of the slimmer RA22CS-N and RA22CS-S ring magnets. Its double countersunk design makes it reversible, making it ideal for mounting items on painted surfaces, as well as for use in crafts, signage, displays, and more.
