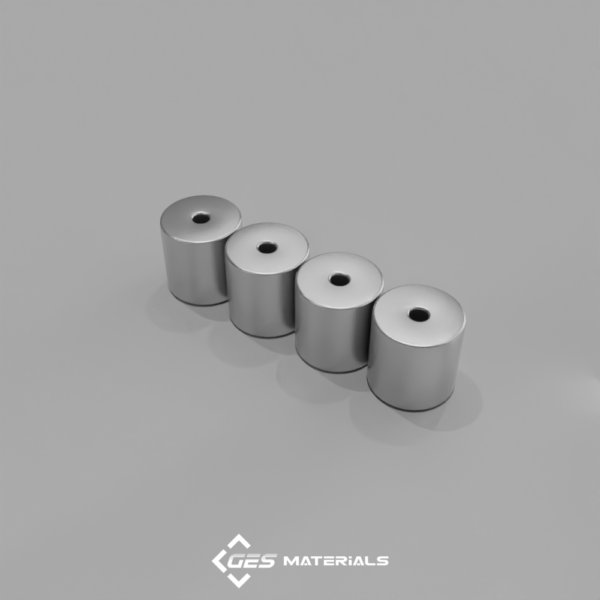

5/8 x 5/8 Inch Diametric Ring Magnet | RA2ADIA N42 Magnets

Additional information

Facebook
Twitter
LinkedIn

Description:

  • Dimensions: 5/8″ od x 1/8″ id x 5/8″ thick
  • Tolerances: ±0.004″ x ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N42
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Diametrical
  • Weight: 0.798 oz. (22.6 g)
  • Pull Force, Case 1: 16.26 lbs
  • Pull Force, Case 2: 20.90 lbs
  • Surface Field: 6937 Gauss
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe

Applications:

These rings are diametrically magnetized, meaning the magnetic poles are located on opposite sides of the outer circumference, perpendicular to the hole’s axis. They can be mounted on a shaft for use with sensors or in electricity generation.
