3/4 x 1/16 Inch Ring Magnet | RC21 N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

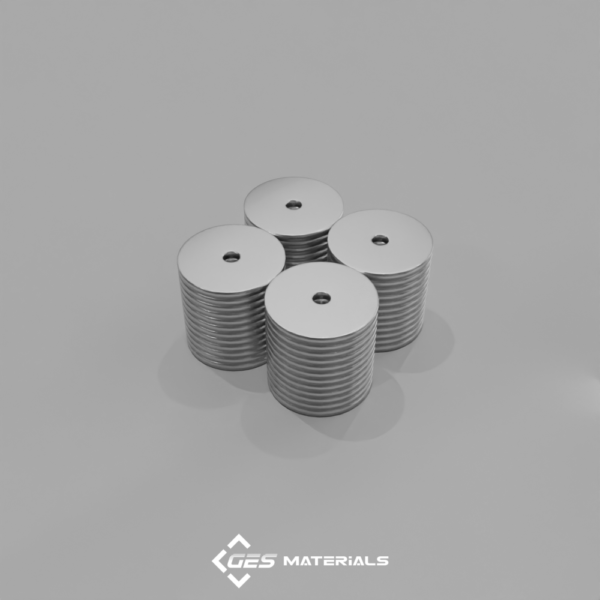

3/4 x 1/16 Inch Ring Magnet | RC21 N42 Magnets

Categories Neodymium Magnets, Neodymium Ring Magnets, Permanent Magnets

Additional information

Description:

Dimensions: 3/4″ od x 1/8″ id x 1/16″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.116 oz. (3.3 g)
Pull Force, Case 1: 4.88 lbs
Pull Force, Case 2: 33.24 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

This thin, versatile ring magnet is great for craft projects or sewing into fabrics. Makes a fantastic clasp for bags, purses, and wallets.
