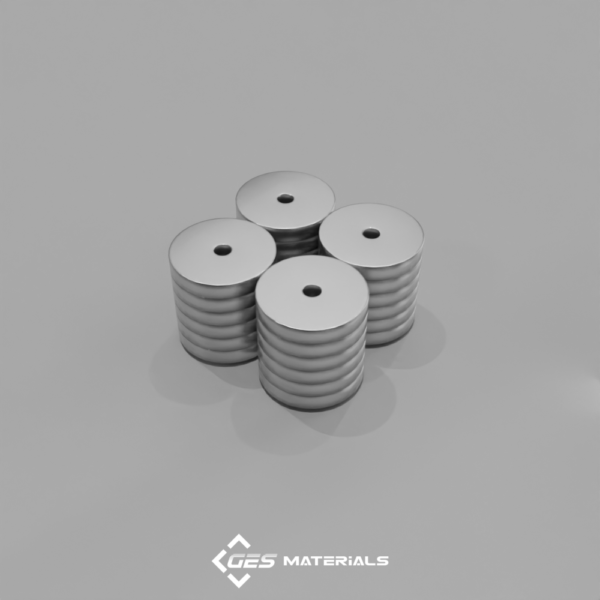

3/4 x 1/8 Inch Ring Magnet | RC22 N42 Magnets

Categories , ,

Additional information

Facebook
Twitter
LinkedIn

Description:

  • Dimensions: 3/4″ od x 1/8″ id x 1/8″ thick
  • Tolerances: ±0.004″ x ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N42
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Axial (Poles on Flat Ends)
  • Weight: 0.233 oz. (6.6 g)
  • Pull Force, Case 1: 9.63 lbs
  • Pull Force, Case 2: 35.18 lbs
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe

Applications:

The RC22 is a surprisingly powerful little magnet. Its 1/8″ center hole adds versatility, making it ideal for a wide range of creative and practical applications.
